Lamp Shining high-bay retrofit light reaches 13,500 lm with Bridgelux LED source

Content Dam Leds En Ugc Iif 2014 01 Lamp Shining High Bay Retrofit Light Reaches 13 500 Lm With Bridgelux Led Source Leftcolumn Article Thumbnailimage File
40010 0 thumb Date Announced: 13 Jan 2014

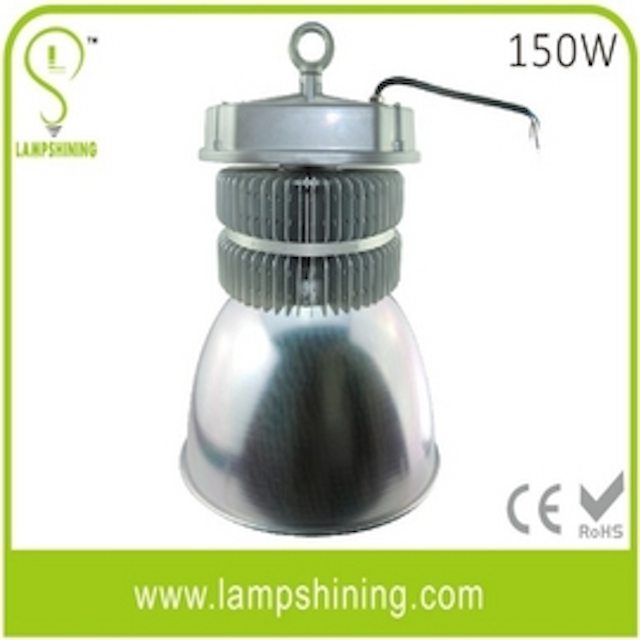

Retrofit fin 150W LED High Bay light Bridgelux - 13500Lm - Mean Well driver - 500W HPS replacement - 5 years warranty

1. Light Source: 1pc Bridgelux
2. Luminous Flux: 12800-13500Lm (Bridgelux)
3. Rated Wattage: 150W
4. PF >0.9
5. Base Options: US, Europe, UK standard plug
6. Input Voltage: 85~265VAC (regular driver), 85~295VAC, 50/60Hz (Mean Well driver HLG-185)
7. Color Temperature:3000~3500K/4000~4500K/6000~6500K
8. CRI >80
9. IP Rating: IP65
10. Beam Angle: 45° & 90° & 120°
11. Lifetime: 50,000+ hours
12. Size: 420mm* L 555mm (45°) / 520mm* L 495mm (90°) / 520mm* L 445mm (120°)
13. Body Temperature: <55 @Ta=25
14. Isolated power supply
15. Mean Well power supply is UL, TUV, CE certified (HLG-185)
16. CE, ROHS approved
17. Retrofit fin aluminum + stainless steel + tempered glass diffuser + acrylic lens
18. Replacement: 500W metal halide

Retrofit LED High Bay Light Features

1. Using high power Bridgelux 110L/W chip
2. More beam angle options of reflector lets you choose the right usage
3. Using a big round acrylic lens, light comes out softly and focused
4. No extra light diffusing, just focused on the ground. No black spot or blinking
5. Easy installation, adjustable stand and modules lets you point the light at different angles
6. Internal waterproof Mean Well power supply which is UL & TUV & FCC & CE approved
7. This retrofit 150W LED high bay light is available running at 110VAC & 277VAC
8. IP65, ideal for indoor and even for outdoor use
9. Retrofit fin slice aluminum as heat sink
10. Longer working lifespan and steady function than changing only the original bulb
11. Environmentally friendly and no air pollution
12. 5 years warranty

What should you be aware of?

1. Read the user’s manual in detail, make sure the environmental conditions fit the expected usage
2. Cut the power off before installation
3. Do not touch the exposed wires when it’s running. Make sure wires are protected by insulating tape
4. Do not install this 150W LED high bay light in ambient where there is high temperature over 55 degrees Celsius or with corrosive gas
5. Indoor & outdoor use
6. Don't throw away casually - check for appropriate disposal


Where to use?

1. This 150W LED high bay light is the best choice for factories, indoor stadiums, gas stations, warehouses and city lighting projects.

Please contact sales office of Lamp Shining for more LED high bay lights

Contact
William Lynn +86-1361-2945-445

E-mail:william@lampshining.com

Web Site:www.lampshining.com
