GlacialLight Announces New Natural Sunlight of GL-AR111-V2A-12-NL Series Support 3-in-1 Dimming and AC-TRICA Dimming

Shared User Usraea659e5945f4d618ad169ac4ffa5e37 Led

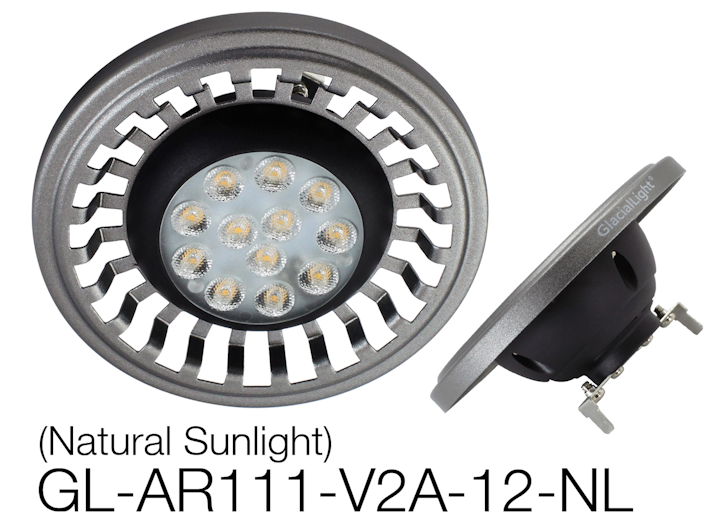

GlacialLight, the LED lighting division of GlacialTech Inc., announces the natural sunlight GL-AR111-V2A-12-NL series. With a CRI of 97, as well as the CQS (Color Quality Scale) is up to 98. The color fidelity index (TM-30-15 Rf) and color gamut score (TM-30-15 Rg) are close to natural sunlight. It also features with two dimming functions include AC-TRIAC dimming and 3-in-1 dimming for greater lighting flexibility. The GL-AR111-V2A-12-NL is well suitable use for spot lighting, residential lighting, commercial lighting, hallway lighting and cabinet lighting.



The GL-AR111-V2A-12-NL is compatible with the round single housing and square gimbals housing kit. The AR111 square gimbals housing kit features a dual ring gimbals system for two degrees of rotational freedom, making it a flexible lighting solution for any space. It also offers single fixture, double fixture, triple fixture and quadruple fixture for a variety of interior lighting applications including hotels, restaurants, and department store.



The natural sunlight GL-AR111-V2A-12-NL with high color rendering index 97 produces a continuous spectral distribution across all wavelengths and no color gaps, just like the spectral distribution of sunlight. It is uniquely designed with full spectrum technology that you can see each color as nature light and always real.



Features:

  • High CRI is 97.
  • High CQS is 98.
  • TM-30-15 Rf is up to 97.
  • TM-30-15 Rg is up to 102.
  • 3-in-1 dimming and AC-TRIAC dimming functions optional.
  • Optional square gimbals housing kit and round single housing accessories available.





Specifications:

Type

Non Dimmable

AC-TRIAC Dimmable

3-in-1 Dimmable

Model No.

GL- AR111-V2AN-12-NL-WW

GL-AR111-V2ADL-12-NL-WW
GL-AR111-V2ADH-12-NL-WW

GL-AR111-V2ADA-12-NL-WW

Energy Used

12W

12W

11.1W

Rated Life

30,000 Hours

Input Voltage

100-240V AC

100-120V AC

200-240V AC

100-240V AC

Power Factor (PF)

0.88 at 120V AC

0.8 at 240V AC

0.92 at 120V AC

0.8 at 240V AC

without dimmer

0.86 at 120V AC

0.8 at 240V AC

without dimmer

CCT (color)

2700K

Luminous Flux

860 lm

860 lm

800 lm

System Efficacy

72 lm/W

CRI (Typ.)

97

CQS (Typ.)

98

TM-30-15 Rf (Typ.)

97

TM-30-15 Rg (Typ.)

102

Beam Angle

26°

Base

G53

Dimension

Ø 111 x 52.7mm

IP Rating

IP20

Operation Temperature

-20°C ~ +40°C

Bundled Driver

GP-HS10P-48C1

GP-TS10P-42L

GP-TS10P-42H

GP-HS10P-48CA

Net Weight

70g+130g (with driver)

Package

36 Boxes / Carton



Read more information about the GL-AR111-V2A-12-NL Series, please visit:

http://www.glaciallight.com/products/Natural-Sunlight_GL-AR111-V2AN-12-NL.htm (Non Dimmable)

http://www.glaciallight.com/products/Natural-Sunlight_GL-AR111-V2ADL-H-12-NL.htm (AC-TRIAC Dimmable)

http://www.glaciallight.com/products/Natural-Sunlight_GL-AR111-V2ADA-12-NL.htm (3-in-1 Dimmable)



About GlacialLight

GlacialLight, the lighting division of GlacialTech, manufactures LED lighting solutions for indoor/outdoor applications and both residential and commercial uses. As well as having a wide range of finished LED lighting products, GlacialLight also offers its clients the option of customizing products for specific needs. Please visit the company homepage at www.GlacialLight.com.
