JESCO Introduces Archilinear:
A Series of Architectural-Grade Energy-Conserving
Linear LED Multi-Mount Luminaires
New Product Introduction: Archilinear — an innovative series of luminaires that brings a new approach to energy-efficient, high-performance pendant, wall-mount and recessed linear LED lighting for a wide range of building interiors.
Design: JESCO Lighting Group design and engineering team.
Manufacturer: JESCO Lighting Group, a U.S. company, and employer founded in 1998.

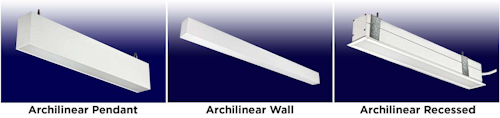

Product Applications: Archilinear (Direct or Indirect), Archilinear DI (Direct/Indirect) and Archilinear RC (Recessed) deliver high lumen output, non-glare energy-saving ambient/accent lighting with no hotspots for a broad range of interior applications.
These include general and executive corporate and professional offices; libraries, schools, and universities; discriminating retail and hospitality; hospitals, clinics, laboratories and physician offices; product showrooms; themed venues; museums and galleries.
In short, wherever high-performance coincides with a desire for integrated, creative architectural lighting design, energy conservation, and long operating life with negligible maintenance.
Product Description: Archilinear, Archilinear D/I and Archilinear RC are architectural-grade linear LED fixtures, with 2.5” apertures in slender heavy-duty aluminum housings, available in 44” or 88” lengths that fit well in any environment.
Archilinear and Archilinear DI can be pendant mounted with aircraft cables or stem mounted via rigid stems. They can also be surface-mounted on a wall (ADA Compliant) or ceiling-mounted with pre-installed mounting brackets.
Archilinear RC can be installed in drywall walls and ceilings as well as onto Slot and T-grid ceilings
Construction & Finishes:
- Archilinear is 3” Wide x 4-1/4” High and can be ordered to provide either direct or indirect lighting. The 44” fixture uses 30-watts, 88” units use 60-watts. Four color temperatures range from 3000K to 5000K producing from 663 to 733 lumens per foot with an efficacy of 88.4 to 97.7 lumens per watt.
- Archilinear DI is 2-1/2” Wide x 4-1/4” High and provides both direct and indirect lighting. The 44” fixture uses 55-watts, 88” models use 110-watts. Four color temperatures range from 3000K to 5000K. The Direct component produces from 663 to 733 lumens per foot with an efficacy of 90.4 to 100 lumens per watt. The Indirect component produces from 580 to 642 lumens per foot with an efficiency of 90.4 to 100 lumens per watt.
- Archilinear RC Flange models are 3-3/8” Wide x 3-1/2” High; Mud-In models are 4-3/8” Wide x 3-1/2” High, and T- & Slot-Grid models are 2-3/4” Wide x 3-1/2” High. The 44” fixture uses 30-watts, 88” units use 60-watts. Four color temperatures range from 3000K to 5000K producing from 663 to 733 lumens per foot with an efficacy of 88.4 to 97.7 lumens per watt.
Fixtures in the Archilinear Series are c-UL-us listed for indoor dry location applications and are dimmable for easy integration into existing 0-10V lighting control systems. Integral battery backup and occupancy sensor options can meet a range of project needs without adding bulk to fixtures.
Contact Information: Learn more about JESCO products and capabilities by visiting: www.jescolighting.com. JESCO Lighting Group’s plant, warehouse, and corporate office are located at 15 Harbor Park Drive, Port Washington (Long Island), New York 11050. Telephone: (800) 527-7796. Fax: (855) 265-5768. E-mail: firstname.lastname@example.org.
