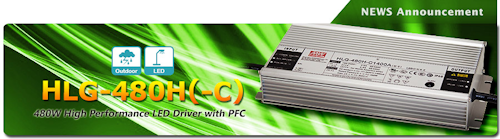

MEAN WELL HLG-480H (-C) Series LED Driver

Shared User Usr49ab917d152149f19c5bbfea039415c1 Led

The HLG (C.V.+C.C. output) and HLG-C (C.C. output) family of MEAN WELL are the most outstanding models of high performance LED drivers in the lighting industry, and there have been complete series HLG-40H/ 60H(-C)/ 80H(-C)/ 100H(-C)/ 120H(-C)/ 150H/ 185H(-C)/ 240H(-C)/ 320H(-C)/600H introduced to the market. Since the demand for 480W applications continue growing, MEAN WELL is pleased to unveil the new 480W~ HLG-480H and HLG-480H-C series in order to meet the needs for large-scale LED lighting systems.


The HLG-480H and HLG-480H-C series follow the high performance and high reliability design of HLG and HLG-C families. Their highest working efficiency are up to 95% and provide 7 years warranty. The whole series provide various models equipped with different dimming functions, like adjustable Io value, 3 in 1 dimming function, and smart timer dimming function. (please refer to the table) that they are very suitable to be applied to the LED street lighting, LED fishing lamp, LED harbor lighting, LED greenhouse lighting, LED high bay lighting, and so on.


  • 90~305VAC full range input
  • HLG-480H:C.V. + C.C.;HLG-480H-C:C.C. output mode
  • Built-in active PFC function
  • High efficiency up to 95%
  • Working temperature: -40~+90℃ (case temperature)
  • IP67/65 rated
  • Fanless design
  • Protections: Short circuit / Over current (HLG-480H only) / Over voltage / Over temperature
  • Comply with harmonic current limit per EN61000-3-2 Class C (≧50% load)
  • Approvals: UL/CUL/ENEC/CCC/CB/CE
  • Type “HL” for use in Class I, Division 2 hazardous (Classified) location luminaires
  • Metal case, dimension ( L x W x H ): 262 x 125 x 43.8 mm
  • 7 years warranty


Model Category  IP Level Input/Output
Style
Introduction
Blank Standard IP67 Cable Io fixed
A Standard IP65 Cable Io adjustable through built-in potentiometer.
B Standard IP67 Cable 3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance)
Dx Optional IP67 Cable Built-in Smart timer dimming function by user request
D2 Optional IP67 Cable Built-in Smart timer dimming and programmable function
