AMERICAN BRIGHT’S FULL LINE OF RGB WITH BUILT-IN IC DEVICES

Shared User Prabd4917dfb394b4a998eee723110b649

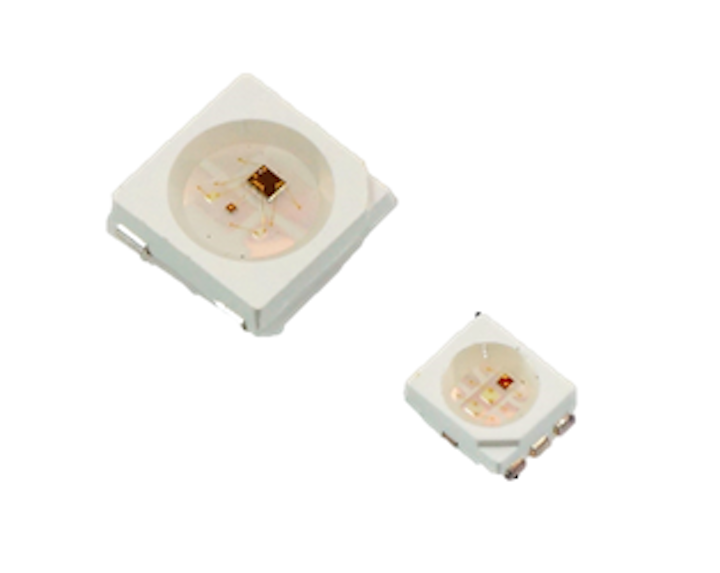

Chino, CA (April 5, 2019) – American Bright introduces a full line of addressable RGB LED devices with built-in IC. This intelligent LED device integrates RGB chips and a control circuit into a single and compact package, available in 5050, 3528, and 4020 (side-emitting), suitable for indoor and outdoor, gaming machine, and all kinds of entertainment lighting. The controlled integrated chip features self-detection signal, support for continuous oscillation, and pulse with modulation (PWM) output that can maintain static screen. These new devices have a low power consumption of 0.2W (max: 1W), applied voltage of 5V and an operating temperature -40° C to 80° C. The emitted red, green, blue can achieve various color mixes with 8-bit (256 level) color set with 5-bit (32 level) brightness adjustment.

The RoHS-compliant RGB LED chip is well-suited for infrared and vapor phase reflow solder process and automatic SMT pick and place equipment. This new PLCC RGB device features a water clear lens and is ideal for a multitude of applications including indoor and outdoor commercial and residential lighting, light bars, and gaming equipment.


FEATURES AND BENEFITS:
  • Self-detection signal
  • Refresh rate of 400 cycles
  • 8-bit (256 level) color set
  • 5-bit (32 level) brightness adjustment
  • Low voltage .2W power consumption
  • Synchronous of one-lane or two-lane
  • Built in support for continuous oscillation
  • Available in 5050 and 3528 (top-emitting), and
  • 4020 (side-emitting) packages
APPLICATION:
  • Full color display
  • Gaming Machines
  • Soft light bar and rope lighting
  • Large LED display and backlighting
  • Decoration and entertainment lighting
  • Indoor and outdoor commercial and residential architectural lighting
