RGB with IC
RGB with IC

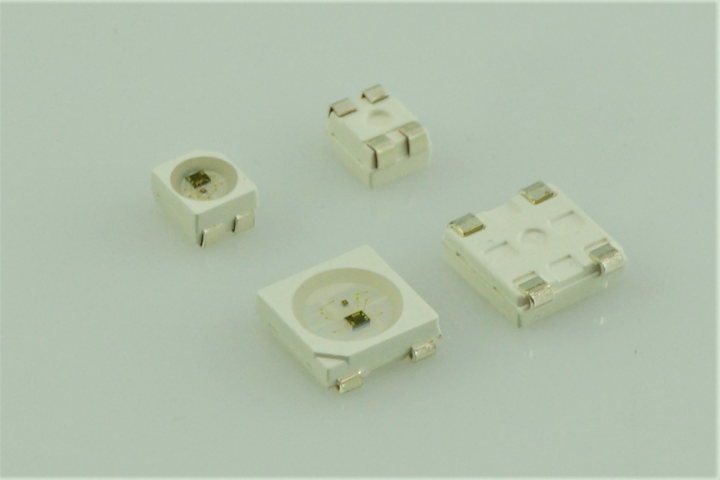

American Bright today announced a new series of PLCC 5050 / 3530 RGB LED chip. The RGB PLCC chip has an integrated circuit that features self-detection signal, support for continuous oscillation, and pulse with modulation (PWM) output that can maintain static screen. The EzyLED has a low power consumption of 0.2W (max: 1W), applied voltage of 5V and an operating temperature -40° C to 70° C. The emitted red, green, blue can achieve various color mixes with 8-bit (256 level) color set with 5-bit (32 level) brightness adjustment.

Features and Benefits:
Synchronous of two-lane
8-bit (256 level) color set
5-bit (32 level) brightness adjustment
Low voltage .2W power consumption
Built in support for continuous oscillation
Self-detection signal
Refresh rate of 400 cycles

Applications:
Large LED display and backlighting
Soft light bar and rope lighting
Full color display
Indoor and outdoor commercial and residential architectural lighting
Decoration and entertainment lighting
Gaming Machines
