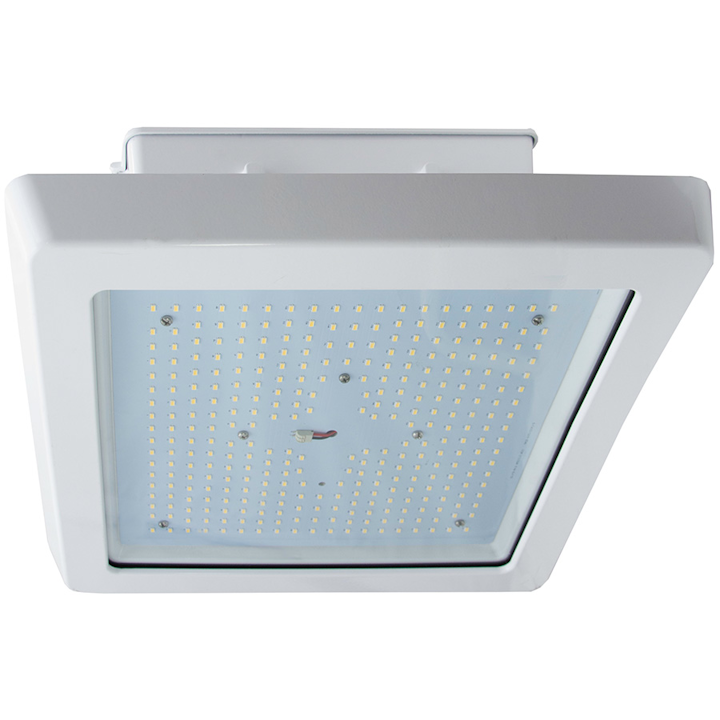

The ThermaLED Gas Station Canopy fixtures are available in 16” and 20” square form factors, and are designed for new construction and retrofitting in most existing canopies. They feature a durable white powder coat finish and an elevated sealed driver and electrical enclosure to prevent water ingress. The fixture housing is designed to emulate legacy HID canopy lights that mount through a 4˝ minimum diameter cut hole in the canopy. A galvanized steel back plate is provided to allow for installation over larger holes. Driver and power connections are made in an IP66 rated powder coated die cast mounting box above the canopy. Mounting heights of 12 to 20 feet can be used based on light level and uniformity requirements. Wattages of 112w and 186w with delivered lumens of 18,000 and 30,000 make these replacements for 250w and 400w MH with a 50% energy savings.
