Helvar 45 W Tunable White LED driver
Helvar 45 W Tunable White LED driver

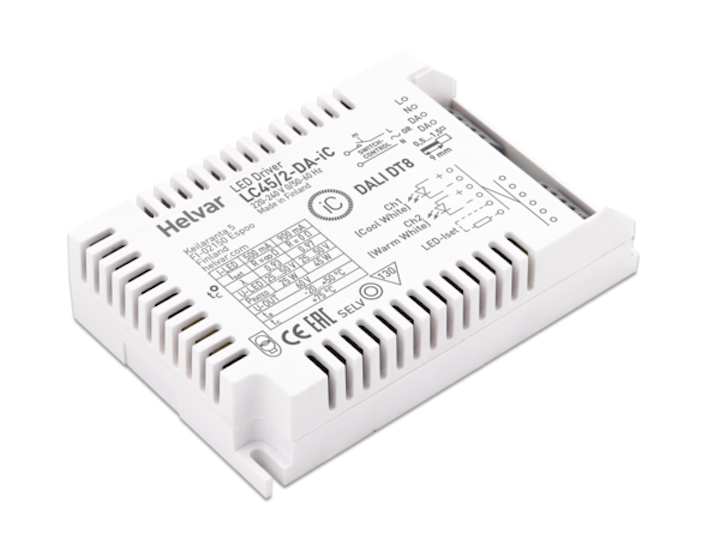

The compact Tunable White DALI Driver LC45/2-DA-iC offers wide dynamic range of colour temperatures on all dimming levels, using Helvars hybrid dimming technology. The total power can be divided between the two output channels in any proportion. The current output can be set between 500 mA and 900 mA, with a current setting resistor. Match the driver with Helvar Tunable White LED modules to create human-centric lighting applications.

Key features:
* Two independent SELV60 rated output channels
* DALI type 8 software
* 0.2-100 % stepless dimming per channel
* 2-100 % dynamic range in colour temperature control
* External NTC thermal input
* Switch-Control for intensity and colour control
* Helvar LED-Iset resistor values (adjusted according to the LEDset specification)

See the complete Helvar Tunable White product range at www.helvar.com/tunablewhite
