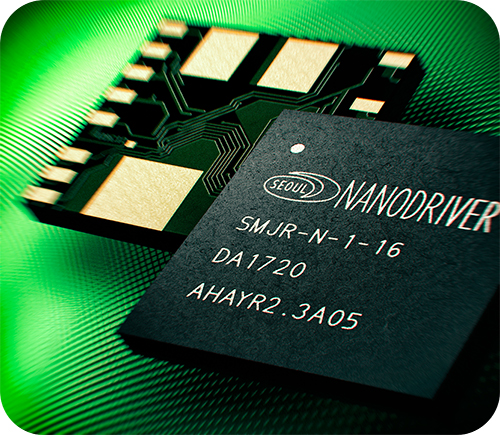

Seoul Semiconductor NanoDriver delivers 24W in a package 13.5mm x 13.5mm
Seoul Semiconductor NanoDriver delivers 24W in a package 13.5mm x 13.5mm
The NanoDriver from Seoul Semiconductor is the industry’s smallest phase-cut DC LED driver series, with a power density 10X higher than conventional LED drivers. The NanoDriver Series is the world’s smallest miniature converter at just 13.5mm wide, and is available in four versions rated for 16W and 24W output power for operating LED lighting with input power of 120V or 230V (50 – 60Hz), and can be driven by AC or DC power supplies.
The NanoDriver Series requires few external components, and delivers 16W or 24W of output power in a package just 13.5mm x 13.5mm x 1.42mm. These drivers are ideal for downlight, flush mount, track and spotlight fixtures. Their small size enables ultra-thin and novel fixture designs in wall sconces, making conventional lamp replacement possible without the need for a large volume recess for the driver, or a reduction in the light output.
The drivers are UL recognized, provide flicker-free, low ripple current operation for phase-cut dimmers, and are compliant to California Title 24, enabling lighting designers to meet the most challenging design requirements, including low flicker, high power factor, Class B EMI and 2kV surge.
