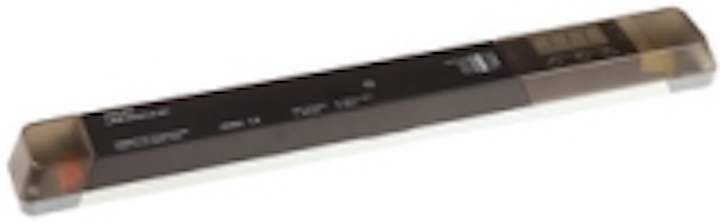

eldoLED introduces LINEARdrive AC, an 8A full-colour mains LED driver/controller
Eindhoven, The Netherlands – At Light + Building 2010, eldoLED introduced LINEARdrive AC, member of the family of AC mains integrated LED driver/controllers, complementing eldoLED’s existing range of DC products like ECOdrive, POWERdrive and LINEARdrive.
LINEARdrive AC is an integrated mains AC, constant voltage driver/controller, targeted at low-power, full-colour LED lighting applications requiring up to 8A for all outputs combined. It is the ideal solution for static and dynamic RGBW linear lighting applications in architecture and entertainment.
LINEARdrive AC is all about control: it allows a 15-bit resolution, offers an 8,000:1 contrast ratio and both linear and gamma-corrected dimming curves. LINEARdrive AC is perfectly suited for both networked and standalone full colour applications. It is LedSync, DMX(-RDM) and DALI (Colour) compatible. In standalone mode, the ShowMaster sequencer can run standard or user-defined shows. Create and manage your own dynamic show sequences with the TOOLbox and TOOLbox PC software.
• LedSync, DMX-RDM, DALI, DALI Colour, 0-10V and switch-dim compatible
• Input voltage range: 100 - 277 VAC
• Maximum load: 8A
• Linear and gamma-corrected dimming curve
• Excellent resolution: 15-bit and high contrast ratio of > 8,000 : 1
• Intuitive, 3-button user interface with display
• Combination of LED driver and power electronics simplifies setup and installation
• Ideal for static and dynamic RGBW lighting applications
• Ease of configuration
eldoLED develops, produces and markets high-performance Drive, Networking and Control solutions for general white lighting and full colour RGB-W/A LED lighting applications. eldoLED proprietary digital technologies enable specific features such as small footprint, optimum power efficiency, configurability, high control resolution and robust thermal management.
The standard product portfolio includes LedSync/DMX/DALI/0-10V compatible LED driver/controllers, and network and control accessories such as 0-10V/DALI/RF network bridges and DimWheel DMX dimmers. A dedicated team of engineers supports eldoLED’s customers by designing standard products, customized solutions and design-in developments: your product, our drive.
For pricing information, please contact the eldoLED sales department at sales@eldoLED.com or +1 (408) 451 9333 (North America) or +31 40 2054050 (other countries). For information regarding customized solutions, please contact the eldoLED OEM department at OEMdesk@eldoLED.com or +1 (408) 451 9333 (North America) or +31 40 2054050 (other countries).
