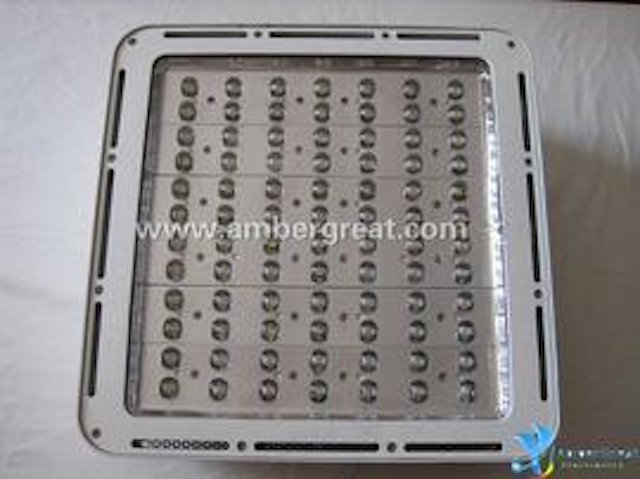

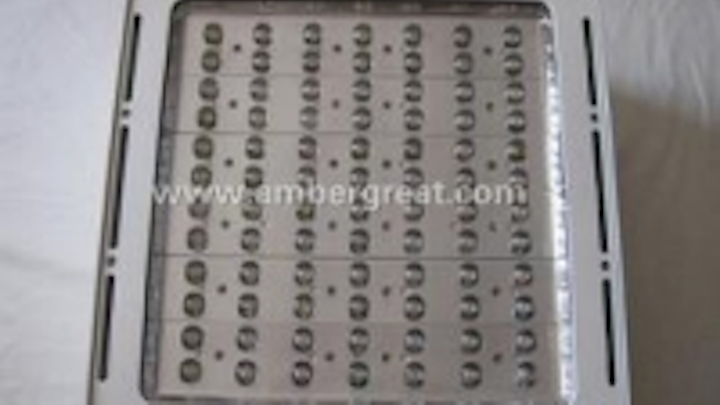

Ambergreat new LED Canopy Light (AG-PT-84T) detail introduction

Jun 14th, 2010
Content Dam Leds En Ugc 2010 06 Ambergreat New Led Canopy Light Ag Pt 84t Detail Introduction Leftcolumn Article Thumbnailimage File
Date Announced: 14 Jun 2010

Features
1. Top light source-LED from CREE
2. Patented packing technology
3. Energy saving, environmentally friendly, long lifespan
4. Radiator made of Aluminium alloy which has the best heat conductivity
5. Applied with patented quadric optics non-imaginglens, luminaire efficiency over 90%
6. Powered at AC board voltage input with constant current drive
7. The lamp has been designed a respiratory system to ensure the dust resistance, water resistance and self cleaning ability
8. Integrated heat conduct panel with lamp body enabled the completed heat dissipation
9. New T3 optical lens reflects square light spot
10. Aesthetic style
11. National-wide various invention patents

Application
1. Petrol station, canopy
2. Airport, supermarket, booth
3. Train station, lobby
4. Industry, shopping mall, indoor parking

Spec detail
Model No.: AG-PT-84T
Input Voltage (VAC): AC 100~277V
Frequency Range (HZ): 50~60Hz
Power Factor (PF): >0.95
Total Harmonic Distortion: <15%
Power Efficiency: 88%
Working Voltage (VDC): DC 53V
LED Consumption (W): 94 W with 84pcs CREE LED inside
LED Luminous Efficiency: >90 lumens/w
LED Initial Flux (LM): 8460 Lumens
Lamp's Effciency (%): >90%
Color Temperature: 4000~5500K
Color Rendering Index (CRI): Ra>75
Light Distribution Curve/Beam Pattern: Asymmetric(Bat Wing)/Rectangular Beam
Junction Temperature (Tj): <75'
Working Enviornment: Temperature: -35'~65'
Humidity: 10%~95%
IP Rating: IP67
Working Life: >50000 hours
Light Body & Lampshade Material: Aluminum Alloy
Gross Weight(Kgs): 10.96 kgs
Packaging Size (mm): 520(L)*440(W)*250(H)
LED Chip: CREE
Warrantee: 5 years

Contact
Tony Marketing Department Ambergreat Electronics Pte Ltd Singapore 258 Boonlay Dr#06-513 Singapore 640258 Tel:0065-68982180 0065-67913539 Fax: 0065-63382898

E-mail:ambergreat.tony@gmail.com

Web Site:www.ambergreat.com
