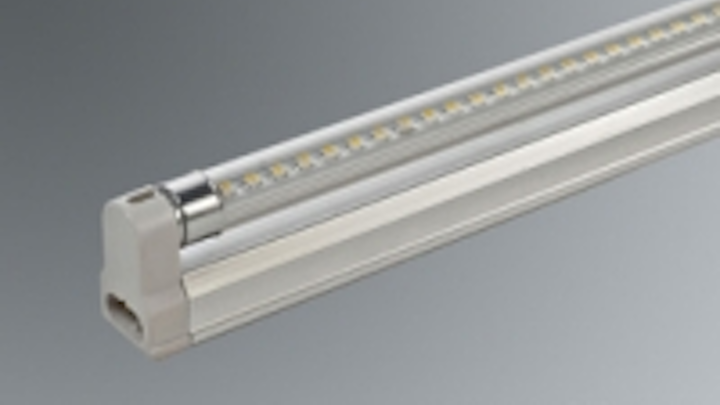

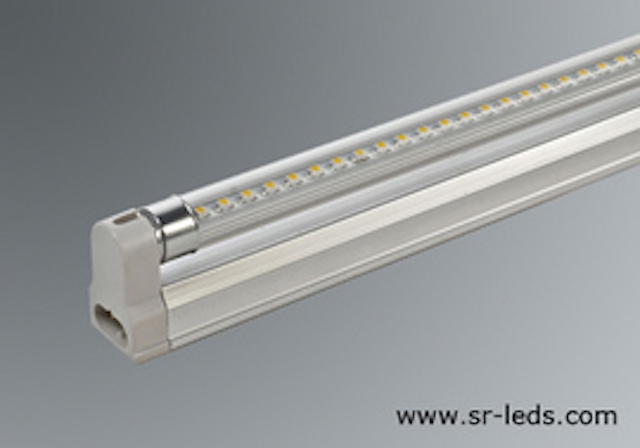

Stellaray T5 LED tube light, designed to replace medium bi-pin T5 fluorescent tubes

Content Dam Leds En Ugc 2010 11 Stellaray T5 Led Tube Light Designed To Replace Medium Bi Pin T5 Fluorescent Tubes Leftcolumn Article Thumbnailimage File
Date Announced: 19 Nov 2010

Stellaray (www.sr-leds.com) just released a brand new 60cm T5 LED tube light, which was designed to replace medium bi-pin T5 fluorescent tubes; it uses High efflciency SMD LEDs with lower power consumption, totally at about 700lm output, but only 6W. It has the best configuration of brightness and power efficiency. Please refer as below specification to know more:

Tube material: aluminum back hoursing + PC front cover
Lighting sources: 120 pcs super bright SMD 3528 LEDs
Input Voltage: DC24V
Power Consumption: 6W
Length: 60cm
Power factor: > 0.95
Short Current: < 5mA
Lumen: 550~720 LM
Beam angle: 180 degree
Colour rendering index: > 80 Ra
Color temperature: 2700K-6500K( Optional, according to your requirement)
Ambient Temperature: -20 ~ 60 degrees Celsius
IP rank: IP40
Lifespan: > 50000h (8 years using validity)
Dimension: L600mm(without pins)∮15mm

Environment friendly: can save up to 75% energy than tranditional T5 fluorescent tubes.
Special artwork: Anodize aluminum back hoursing
Special circuit layout and good heat dissipation
Visual health: No flickering or RF interference, protect eyesight.
No mercury, no recycling, no buzzing.
No cost of maintenance and easy installation.
Can be connected directly into most fluorescent flxtures.
