Zhuhai introduces an LED street lamp power supply PAA-381440M004

Aug 10th, 2010
Content Dam Leds En Ugc 2010 08 Zhuhai Introduces An Led Street Lamp Power Supply Paa 381440m004 Leftcolumn Article Thumbnailimage File
Date Announced: 10 Aug 2010

led street lamp driver use in guardrail lamp,flood light,underwater lamp,street lamp,high power 1W/3W spot lamp,underground lamp,high power flood lamp,reading lamp,indoor lamp, outdoor lamp,LED fence protecting rope,rainbow rope, light strip,etc.

Product reference:
Model: PAA-381440M004;Input voltage:100-250V;Working frequency:50/60Hz;Output voltage:25-38V;Output Current:1.4-1.5A;Output power:55W;Working Temp:-25-50oC;Certification:CE/ROHS;Portecion grade:IP67

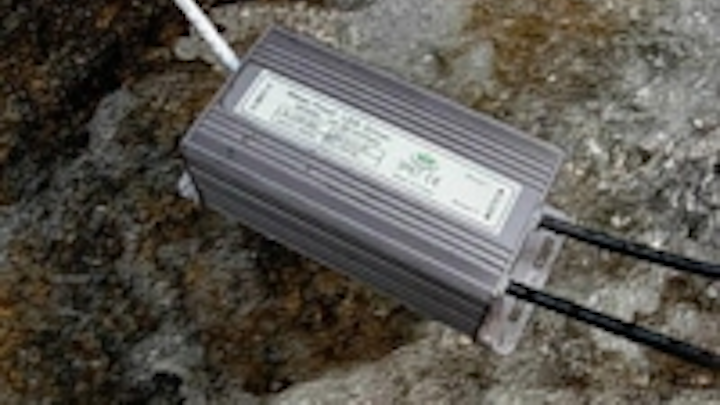

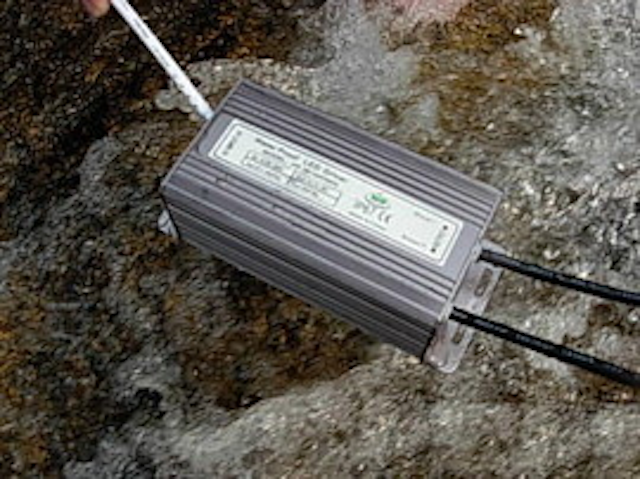

Product figure:
size:150*68*50mm
Case material:Aluminum
Wire requirement:Input: white wire,Output brown +blue-

Characteristics of product
High efficiency,save energy, entironment friendly
High stability and low ripple, increase light efficiency and decrease light attenuation
Assure LED stability long lift and light efficiency by constant current
Integrity protection,over loading, over voltage, over current
2 years warranty
Certifications for CE(EMC+LVD) & ROHS

Contact
Zhuhai PNpower Electronic Technology Co.,Ltd Add:6F NO.3 JinShan Road,Xiang Zhou, Zhu Hai,Guang Dong,China HP: 0013631293201 Tel:(86)-756-8650882 Tax:(86)-756-8536474 Email:sales2@pnpower.com MSN:rebeccacaixia@hotmail.com

E-mail:sales2@pnpower.com;rebeccacaixia@hotmail.com

Web Site:www.pnpower.com
