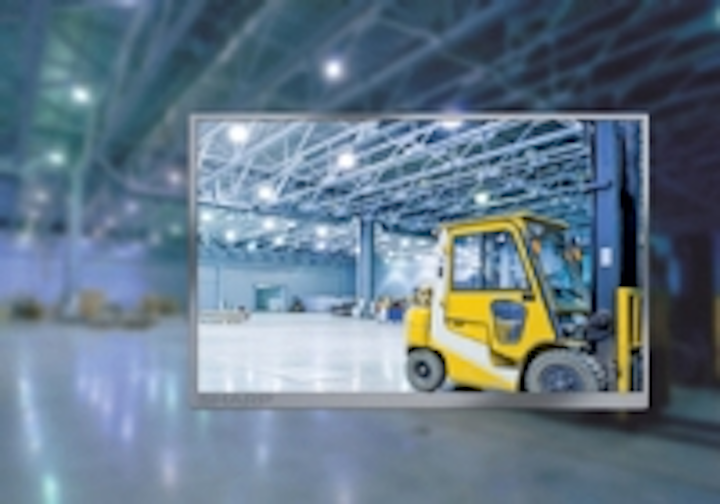

Sharp 7-inch industrial displays with LED backlighting

Content Dam Leds En Ugc 2010 03 Sharp 7 Inch Industrial Displays With Led Backlighting Leftcolumn Article Thumbnailimage File
21420 0 thumb Date Announced: 11 Mar 2010

-- Sharp unveils a new range of industrial displays with 7" diagonal screen and LED backlighting.

The 16:9 format, 7" diagonal is emerging as the new standard for numerous portable test, measurement and input devices spanning all industrial sectors - logistics, transport, medicine, vehicle manufacturing and repair, the hotel trade and catering, etc - and various consumer applications such as pocket PCs, media players and electronic picture frames.

To cover te entire range of applications, Sharp is unveilling a series totalling five industrial standard 7" TFT LCDs in the first half of 2010. The spectrum ranges from the robust screens of the more mechanically resilient Strong2 class with extended temperature range from -30 to 80°C to a "light" type LQ070Y3DG3A variant, with an operating temperature of -20 to 50°C which is designed to be more suitable for consumer applications. This display is also available as a touch screen model (type LQ070Y3DG3B) boasting very good optical properties: with 300 cd/m² it possesses comparatively high brightness and is every bit equal in terms of contrast to its non touch screen sister model. The TFT LCD is also impressively slim, at 7.1mm being only 1.1mm deeper than the variant without the touch screen unit (LQ070Y3DG3A).

LED Backlighting: Easily Dimmable and Robust with Low Voltage

In addition to the 800x480 pixel resolution, what the five new 7" industrial displays have in common is their LED-based backlight. Compared to conventional CCFL backlights, one of the principle advantages of LEDs for industrial applications is their extremely rapid responsiveness and good dimming qualities. This makes it easy to control the brightness of the display as a function of the ambient light using photodiodes to automatically adjust the display`s brightness so that legibility remains consistently good even in frequently changing light conditions.

A further plus point of LED backlighting is the low voltage, direct current power supply, which reduces EMI behaviour while reducing system complexity since measures to protect against high-voltage can be dispensed with. Operation in areas at risk of explosion is also simplified.

Mechanically as well. LED backlights are beneficial. With depth, depending on model, of between only 6 and 9mm, Sharp`s new 7" TFT LCDs have less than half the depth of comparable CCFL variants. This is accompanied by greater mechanical robustness, LEDs being far less fragile compared with the glass bodies of cold cathode tubes, This simplifies the mechanical deign and increases ruggedness.

Thermal Management Determines Suitability for Industrial Use

By virtue of their technology, LEDs are clearly superior to CCFLs at low temperatures; at ambient temperatures below zero degrees Celsius LED backlights can sometimes achieve a life of 200,000 hours, delivering their full light output the moment they are switched on. At higher temperatures however, LEDs are sensitive. The generation of large amounts of heat, occurring locally in the vicinity of the illuminants, must be effectively evacuated as it can damage the LCD panel and backlight itself, considerably reducing their life. Consequently, Sharp has developed a special chassis for LED backlit industrial displays in which the backlighting LEDs are linked thermally directly with the mechanical parts of the module. Waste heat is thereby vented effectively through the rear of the display into the surrounding area so that no harmful heat accumulates, even at high temperatures. The 7" series Strong2 display is therefore designed, as are all Strong2 displays, to be operated in environments ranging from -30 to 80°C, achieving a life of 50,000 hours in the process.

Availability

The new type LQ070Y3LG4A 7" display is available immediately from APC displays+. The two "Light Industrial" LCDs (LQ070Y3DG3A, and LQ070Y3DG3B) and the Strong2 variant (LQ070Y3LG1C) will follow at the end of Q1/2010 and the ASV model (LQ070Y3LW01) will be available from the end of Q2/2010.

Contact us for up to date data sheets.
