Magtech introduces 20W HB LED driver with dimming control

Content Dam Leds En Ugc 2006 01 Magtech Introduces 20w Hb Led Driver With Dimming Control Leftcolumn Article Thumbnailimage File
11276 0 thumb Date Announced: 25 Jan 2006

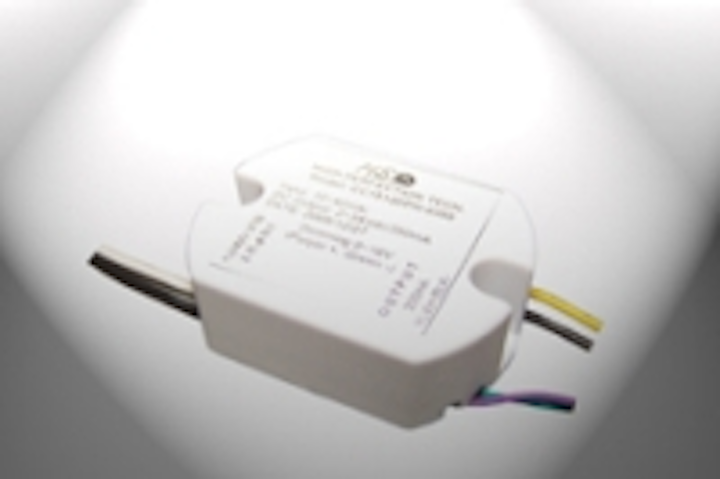

Las Vegas, Nevada – Magtech Industries Corporation introduces the 20-Watts CC1512DPH series, a DC/DC or AC/DC constant current LED driver with dimming for driving high power LED strings and clusters.

This versatile driver operates in dual input capacities, DC (10-40VDC) and low voltage AC (10-28VAC) and provides short circuit protection for product safety. The output ranged from 2~24VDC that supports up to 6 LED in series. The 0-10VDC control voltage provides dimming range from 0 ~ 100%.

Key Features for CC1512DPH-xxx
- Compact size, light weight, 1.79”x1.34”x0.75” (LxWxH)
- IP66 rated, suitable for wet, damp and dry locations
- Wide range input from 10-40VDC or 10-28VAC
- PWM dimming, 0-10VDC control voltage, dimming range 0-100%
- Short Circuit, Over-voltage protection
- Operation temp. from –40 ~ +50 Deg. C.

For more information, please go to
http://www.magtechind.com/summary.php?id=21
or contact our experienced engineer team to answer any of your technical requirements and detailed specifications.

Contact
Magtech Indsutries Corp. 702-364-9998, 702-364-1562 (fax)

E-mail:csupport@magtechind.com

Web Site:http://www.magtechind.com
