Optek develops wide-gap emitter-sensor pair for industrial use

Mar 30th, 2006
Content Dam Leds En Ugc 2006 03 Optek Develops Wide Gap Emitter Sensor Pair For Industrial Use Leftcolumn Article Thumbnailimage File
Date Announced: 30 Mar 2006

Providing design engineers with a RoHS-compliant, non-contact device for industrial applications, TT electronics OPTEK Technology has developed a wide gap optical sensor that includes an emitter-sensor pair. Designated the OPB856Z Series, the product consists of an LED and a phototransistor designed to operate efficiently over distances up to 12 inches in industrial environments.

“This device is designed for ease-of-use in industrial applications,” said Roland Chapa, OPTEK Technology’s Assemblies Business Unit Director. “The emitter and sensor housings are color-coded and the components are easily panel mounted with standard connector fittings, making this emitter-sensor pair ideal for applications such as assembly line and machine automation.”
Additional applications for the wide gap optical sensor include non-contact interruptive object sensing, equipment security and machine safety.

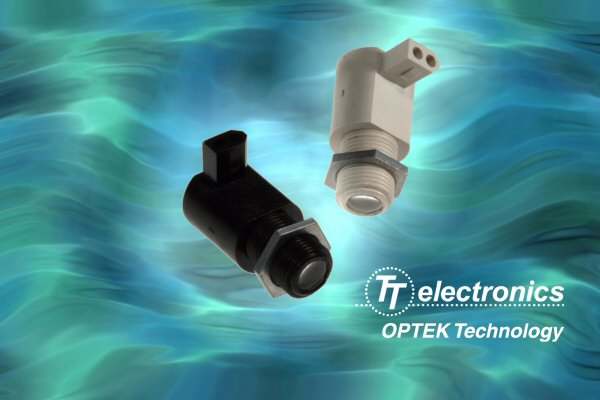

The wide gap optical sensor components are mounted in threaded color-coded housings; the LED (white housing) and phototransistor (black housing) are designed for easy panel mount through a 12mm (0.473”) hole, with a corresponding nut included for each housing. The emitter-sensor pair is designed to electrically mate with a Molex 03-06-2023 connector with either male (for the LED) or female (for the Sensor) pins.

The emitter uses an LED with a 935nm peak wavelength, matched to a silicon phototransistor (sensor).

Electrical performance of the output phototransistor is characterized at collector-emitter voltages of 30V, emitter-collector voltage of 5V, and power dissipation of 100mW. The LED has a maximum continuous forward DC current of 40mA, a reverse voltage of 2V, and power dissipation of 100mW.

The on-state collector current for the phototransistor is 1.8mA minimum (VCE=5V; IF=20mA). OPTEK will also produce devices outside these specifications to meet customer requirements.

The OPB856Z Series sensors are RoHS-compliant, as well as compatible with reflow and wavesolder temperature of 260°C seen by the device. Rated operating temperature is -40°C to +85°C.

For samples of the OPB856Z wide gap optical sensors or more technical information, contact TT electronics’ OPTEK Technology at 1645 Wallace Dr., Carrollton, TX, 75006; call 972-323-2200, e-mail at sensors@OPTEKinc.com or visit OPTEK on the web at http://www.OPTEKinc.com/irsmd.htm. In Europe, contact JP Delaporte at info@optek-europe.com. In Asia, contact T.H. Swee at thswee@optekasia.com or call +852-9190-4641.

OPTEK Technology is a leading manufacturer of standard and application-specific sensors using infrared, visible, magnetic and fiber optic technologies focused on applications in office machines, industrial equipment, encoders, automotive electronics, military and high-reliability applications, and medical diagnostic equipment. Headquartered in Carrollton, TX, the company is ISO/TS16949:2002 and BS EN ISO 9001:2000 certified, as well as ITAR registered. OPTEK Technology was acquired by TT electronics in December 2003.
