More Design Tools for High-Power LED BriteFlash in Camera Phones, Digital Cameras
Sydney, Australia –- CAP-XX Limited (LSE:CPX), developer of the supercapacitor-driven BriteFlash Power Architecture, today announced availability of supercapacitor-optimized LED flash drivers from several power management integrated circuit (PMIC) companies to facilitate design of high-power LED flash units for high-resolution camera phones and digital cameras.
AnalogicTech’s AAT1282, and ON Semiconductor’s CAT3224 and soon-to-be-released NCP5680 supercapacitor-optimized LED flash drivers team with a thin, prismatic supercapacitor to drive today’s high-current white LEDs (WLEDs) in a thin-form solution which provides comparable light energy to a bulky xenon flash.
These LED flash drivers integrate all circuitry required to charge the supercapacitor, manage in-rush current and control LED current, thus saving development time, board space and component cost. Both Seoul Semiconductor and ON Semiconductor have created LED flash module reference designs that demonstrate the thin-form BriteFlash solution.
“This is valuable for our customers, since it offers a more integrated approach to incorporating BriteFlash into small mobile handsets and digital cameras,” said Peter Buckle, CAP-XX vice president of sales and marketing. More supercapacitor-optimized LED flash drivers are in late-stage development at other PMIC companies, reported CAP-XX.
To produce high-resolution pictures in low-light conditions, cameras of 5 or more megapixels require a high-intensity flash. Today’s WLEDs can deliver such light energy, but need up to 400% more power than a battery can provide. To support the battery, a thin supercapacitor can drive the LED flash to full intensity while also handling other peak-power needs – zoom, auto-focus, audio, video, wireless transmissions, GPS readings and RF amplification – without compromising slimline design.
CAP-XX developed the BriteFlash Power Architecture to give designers a thin-form LED flash solution that delivers light energy that far exceeds standard battery-powered LED flash and rivals xenon flash.
BriteFlash combines an LED flash driver IC, supercapacitor, battery and WLEDs. The flash driver’s boost converter charges the supercapacitor to 5.5V, which then delivers high-peak current to drive the LED flash. The battery only supplies average power, and recharges the supercapacitor between flashes. A white paper explains more at: http://www.cap-xx.com/resources/pres_wp/pres_wp.htm#wp
Supercapacitor-optimized LED flash drivers integrate tools to manage the supercapacitor in power-hungry portable applications. ON Semiconductor’s low-power business unit director, Marie-Therese Capron, explains their two solutions. “While CAT3224 is an integrated 4A LED driver for compact camera-flash design, our upcoming NCP5680 is a 10A LED driver featuring fully-programmable outputs via I2C interface, and power regulation capability to drive other power-hungry circuitry such as audio. Both solutions provide high-intensity photo flash plus continuous lighting for capturing video in dark environments.”
Phil Dewsbury, product line director for AnalogicTech, said, “Lithium Ion batteries simply cannot supply the high-peak currents required for high-intensity LED flash. Supercapacitors can store the required energy while keeping the form factor small. However, charging them quickly while minimizing battery current presented a unique challenge. Our solution was the AAT1282, a 2A, dual-output LED flash driver IC. Since its introduction, EDN has named the chip a finalist in the magazine’s annual Innovation Awards. We are also sampling the AAT1282-4 which boosts output to 4A to support higher-megapixel cameras.”
For more about CAP-XX, visit http://www.cap-xx.com.
# # #

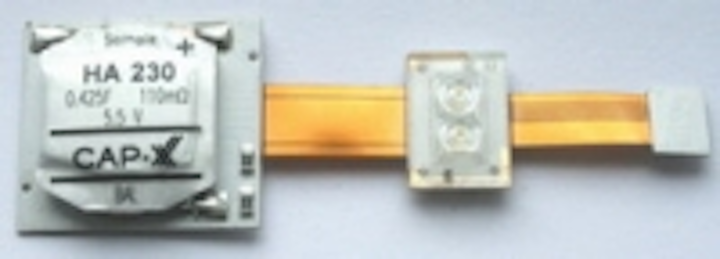

Notes: For a block diagram and photos of LED flash drivers and modules: http://www.cap-xx.com/news/photogallery.htm#BriteFlash. For photos comparing LED and xenon flash: http://www.cap-xx.com/news/photoarchive.htm#Xenon.
