Date Announced: 09 Apr 2009

-- Cypress's New PowerPSoC(r) Family Changes LED Lighting Design Landscape With Industry's First Integrated LED Driver and Controller on One Chip New Family Integrates Multiple Components with Flexible Solution For a Variety of Lighting Applications, as Well as White Goods, Industrial and More

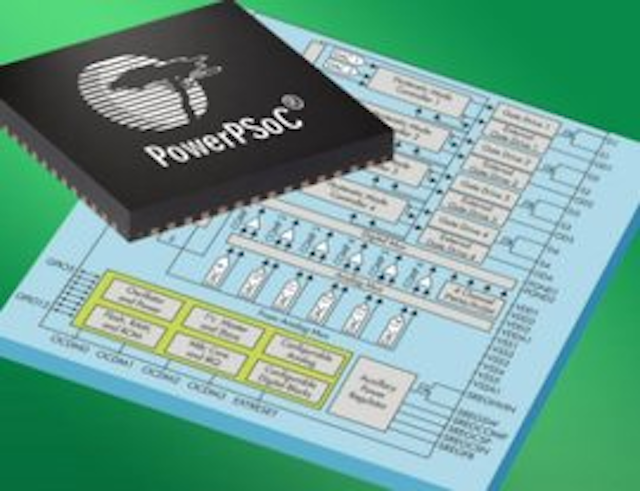

SAN JOSE Calif., -- Cypress Semiconductor Corp. (NYSE: CY) today introduced the PowerPSoC(r) family of integrated embedded power controllers, the industry's first single-chip solution for both controlling and driving high-power LEDs. The PowerPSoC family integrates four constant-current regulators and four 32V MOSFETs with Cypress's PSoC(r) programmable system-on-chip, which includes a microcontroller, programmable analog and digital blocks, and memory.

This unprecedented level of integration provides customers with a single-chip solution for high-quality LED-based lighting products, and extends into other embedded applications such as white goods and industrial control. The result is end systems with fewer components, faster design cycles, lower power consumption and higher reliability. More information on the PowerPSoC family is available at www.cypress.com/go/pr/PowerPSoC.

The companion software for PowerPSoC, the PSoC Designer(tm) development tool, enables designers to quickly and efficiently program the controllers for different lighting and power options. It also allows changes late in the design cycle without having to change the circuit board layout.

"We are bringing the unique PSoC value propositions-integration, flexibility and programmable analog-to a new set of applications and customers," said Curtis Davis, vice president of Cypress's PowerPSoC Division. "PowerPSoC represents an important step in the development of the PSoC platform, as well as the entire Cypress product line."

"General illumination, medical, and architectural LED lighting applications all stand to benefit from the combination of integration and programmability offered by PowerPSoC," stated Jeff Shepard, President of Darnell Group, Inc. "Those same applications offer long-term compound growth for the next five years of over 90%/year, as well as immediate growth potential in 2009."

PowerPSoC Features
Integrated Power Peripherals
* Up to four integrated, independently operated 32V / 1A MOSFETs offer the ability to drive high power LEDs up to 1A.
* Up to four programmable hysteretic controllers provide controlled current output.
* Up to four low-side gate drivers with programmable drive strength provide the ability to support voltages above 32V with external MOSFETs
* Up to 2MHz switching frequency allows smaller, less expensive inductors.
* Floating load buck, floating load buck-boost, and boost converter topologies enable flexibility for applications' different voltage requirements.
* Auxiliary power regulator offers the ability to power the chip from a single power supply.
* 16-bit dimming for lighting applications that require high-resolution dimming

PSoC Architecture
* Eight programmable digital blocks for functions such as timers, counters, PWMs, and UARTs.
* Six programmable analog blocks for functions such as amplifiers, ADCs, DACs, filters and comparators.
* 16K of Flash memory
* 8-bit microcontroller

Availability
The following PowerPSoC devices are available today:

Part Number Number of Channels Internal FETs Package
CY8CLED04D01-56LTXI 4 4 x 1A 56-pin QFN
CY8CLED04D02-56LTXI 4 4x 0.5A 56-pin QFN
CY8CLED04G01-56LTXI 4 N/A 56-pin QFN
CY8CLED03D01-56LTXI 3 3 x 1A 56-pin QFN
CY8CLED03D02-56LTXI 3 3 x 0.5A 56-pin QFN
CY8CLED03G01-56LTXI 3 N/A 56-pin QFN

In addition, Cypress is offering the CY3268 demonstration kit, which drives four LEDs in a small form-factor (2.5" x 3.5') with basic reprogramming/debugging capability. A PowerPSoC evaluation kit (CY3267) is also available for customer prototyping. It offers a modular approach with interface for daughter-cards to support multiple applications, multiple protocols (DMX512 and DALI) and customer-specific daughter cards. The CY3267 also offers flexible topology, supporting buck, boost and buck-boost configurations. Both of the PowerPSoC kits are available today from www.cypress.com.The CY3268 is priced at US$50 and the CY3267 is priced at US$150.

About Cypress's Intelligent Lighting Solutions
LED lighting design requires a complex set of calculations with custom firmware to deliver consistent color. The two biggest problems that LED lighting engineers face are having to account for differing LED performance specifications based on manufacturing bins and the LEDs' degradation (such as output flux, wavelength etc.) over different temperatures. With PSoC Designer, designers simply select a color from a gamut presented on-screen. Cypress offers temperature or optical feedback algorithms that are automatically applied to the selected design and programmed into a Cypress controller. This can save anywhere from weeks to months of design time for a complex design.

Cypress, the Cypress logo, PowerPSoC, PSoC, West Bridge and EZ-USB are registered trademarks, and, EZ-Color, PrISM, PSoC Designer and CyFi are trademarks of Cypress Semiconductor Corporation. All other trademarks are the property of their respective owners.
