Marktech & Optrans introduce 4-inch InP wafers

Content Dam Leds En Ugc 2009 11 Marktech Optrans Introduce 4 Inch Inp Wafers Leftcolumn Article Thumbnailimage File
20484 0 thumb Date Announced: 12 Nov 2009

Latham, New York: Marktech Optoelectronics of Latham, NY, a leader in the design, development and sales of optoelectronic components, in collaboration with Optrans Corp of Kawasaki-Shi, Japan, a leader in specialized visible and infrared emitters, sensors and assemblies have today announced the introduction of high purity, high speed InP wafers.

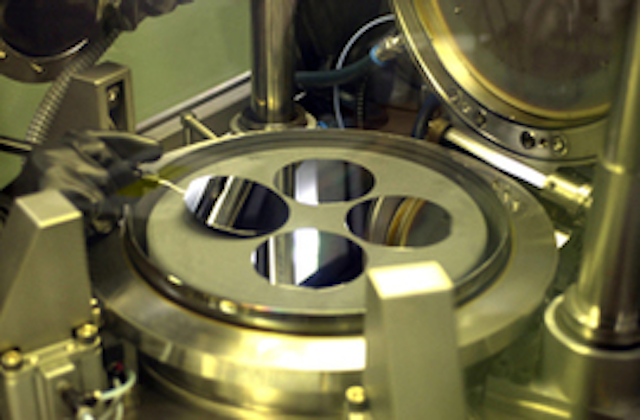

The Optrans research and development team has succeeded in developing a new MOCVD process that produces multiple 4” wafers simultaneously which has significantly reduced the processing time required to grow InP wafers. This new Closed Coupled Showerhead (CCS) ® technology used in Optrans MOCVD reactors results in increased production capacities and greater cost savings.

InP material is especially noted for its high operating speeds, low noise, low voltage and high reliability. The industry is shifting from traditional materials such as Gallium Arsenide (GaAs) to the next generation of high speed circuits using InP. InP is used in both photonic and electronic applications. Typical photonic device types include: lasers, photo-detectors, avalanche photo diodes, optical modulators and amplifiers, waveguide-based devices, quantum photonic devices, and both optoelectronic and photonic integrated circuits as well as new devices for optical communications, switching, networking, signal processing and leading edge material for solar cells.

InP based High Electron Mobility Transistors (HEMTs) can offer the ultimate solution to low noise operation and are the best choice for optoelectronic applications which require compatibility with InP-based optical devices and speeds of 40Gbits/sec or above. InP Heterojunction bipolar transistors (HBTs) are the preferred solution for future generations of fiber optic transmission systems envisioning speeds of up to 80Gbits/sec.

Optrans is poised to meet the growing demand for InP wafers in the microelectronics and telecommunications industries. Optrans 4” InP Wafers are currently in full production with lead times of 8-10 weeks. This product is only available through Marktech Optoelectronics in Latham, NY. For pricing and product information contact Vince Forte at 800.984.5337 ext. 206 or visit www.marktechopto.com.

Marktech Optoelectronics: Marktech Optoelectronics is an engineering and design group with over 25 years of opto experience. We continue to focus on the latest state-of-the-art technologies incorporating III-V materials, components and assemblies in order to provide innovative solutions that are designed to meet the needs of our customers. Marktech is the Exclusive North American and European Sales and Marketing for Optrans Corporation.

Close Coupled Showerhead® is a registered trademark of Aixtron AG.
