Tyco Electronics' inverted SMT thru-board connector

Content Dam Leds En Ugc 2009 03 Tyco Electronics Inverted Smt Thru Board Connector Leftcolumn Article Thumbnailimage File
18224 0 thumb Date Announced: 16 Mar 2009

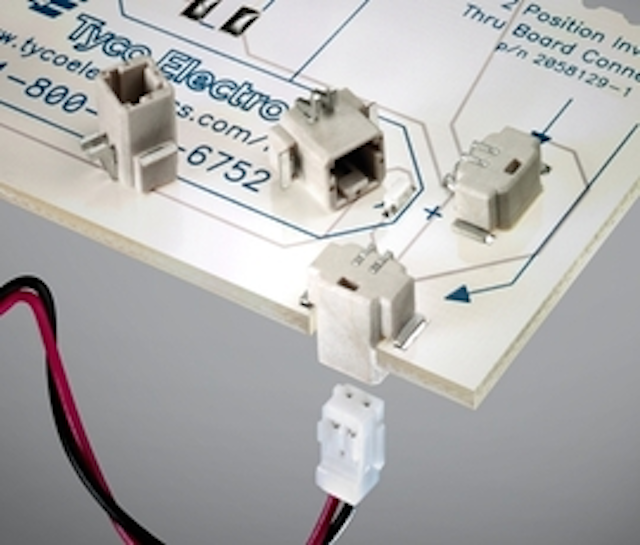

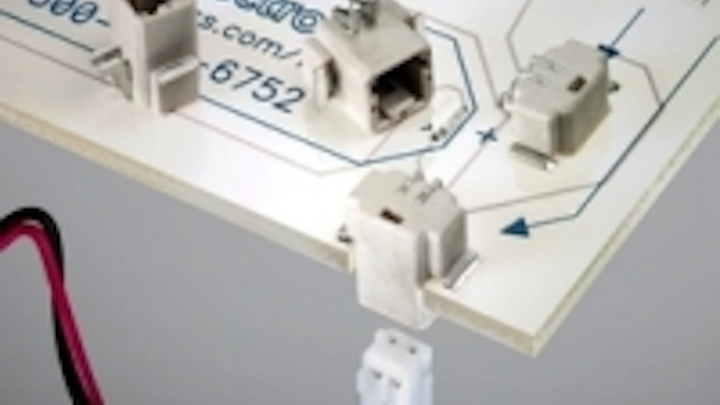

HARRISBURG, Pa. – March 13, 2009 –The SMT thru-board connector provides a means to bring power from the underside of an FR4 or aluminum-clad pc board, eliminating issues of dressing wires on the top side of LED boards. The 2-position through 6-position connector surface-mounts on the top of the board, passing through the board to present an underside interface. The connector mates with standard Mini CT connectors. The inverted design allows simpler assembly and installation of solid-state LED lighting in architectural, residential, and commercial applications. The Mini CT connector is rated for 3 amps per contact, on 24 AWG wire.

With a space-saving low-profile design and rounded corners to minimize shadowing, the connector fits through a hole or notch in the board.

High-temperature materials allow the connector to be reflow soldered, while a flat top surface provides compatibility with vacuum pickup. The connector uses surface-mount hold-downs to provide stability during mating and unmating.

With UL Listing and CSA Certification, the connectors meet the requirements of UL 1977, File No. E2847.
