60-watt medical power supplies approved to UL60601-1 3rd edition

May 7th, 2012
Content Dam Leds En Ugc 2012 05 60 Watt Medical Power Supplies Approved To Ul60601 1 3rd Edition Leftcolumn Article Thumbnailimage File
Date Announced: 07 May 2012

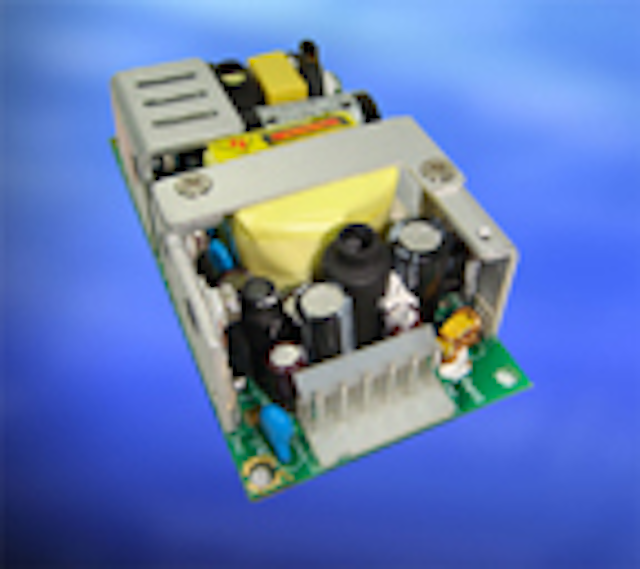

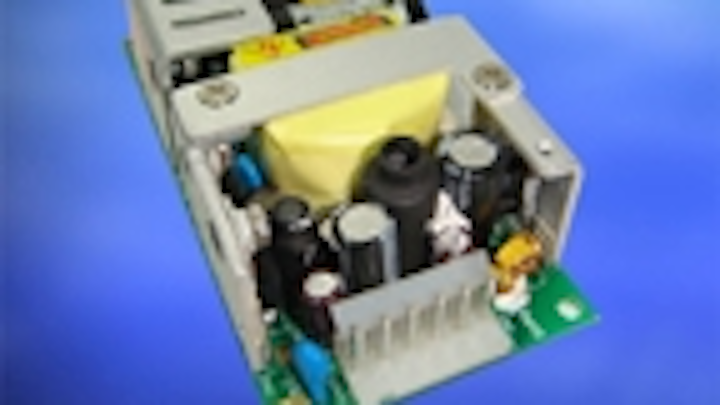

The PM60 Series of medical power supplies from Protek Power provide up to 60W of performance packed design and are approved to the 3rd Edition of UL60601-1 and EN60601-1 medical safety standards. Units are also RoHS compliant. This 60W Series is ideal for a variety of medical and dental applications, including patient vicinity medical devices. An ITE version of the Series is also available (PU60 Series).

The PM60 Series’ accept a 90-264VAC universal input. Single output models have voltages ranging from 5VDC to 48VDC and a variety of dual and triple configurations are available.

Requests for modified standard and full custom products are welcomed.

The PM60 Series also boasts typical efficiencies of 80-88%, low leakage current, and 4000VAC input-output isolation voltage. Comprehensive protection circuitry, including overvoltage on Output #1, and short circuit protection, is inherent in the design. Conducted and radiated EMI performance meets Level B standards and units have an MTBF of 400,000 hours at full load.

Units are economically priced, starting at $18.50 in OEM quantity, with delivery from stock to 12 weeks ARO. Full specifications are available on-line at www.protekpowerna.com or contact our Sales/Technical Group at sales@protekpowerna.com or (978) 567-9615

Contact
Susan Cervenak Protek Power North America Inc. 43 Broad Street Hudson, MA 01749 978-567-9615

E-mail:scervenak@protekpowerna.com

Web Site:www.protekpowerna.com
