UHP-Mic-LED-405 - ultra high power LED-405nm light source for fluorescence

Content Dam Leds En Ugc 2012 05 Uhp Mic Led 405 Ultra High Power Led 405nm Light Source For Fluorescence Leftcolumn Article Thumbnailimage File
35296 0 thumb Date Announced: 23 May 2012

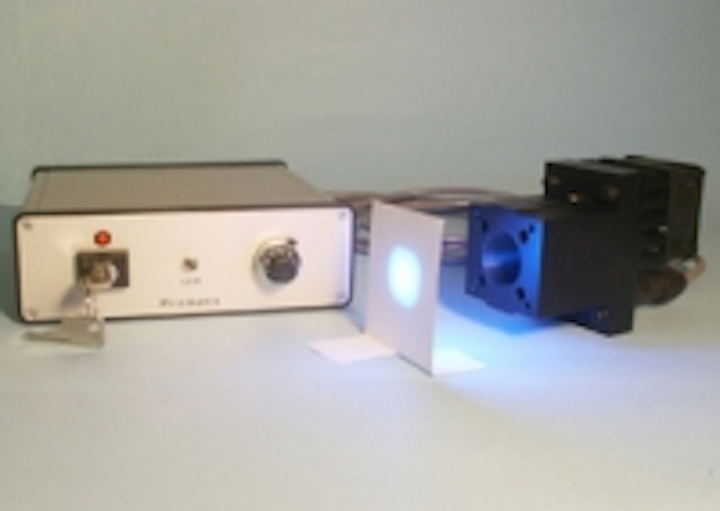

Recently Prizmatix (http://www.prizmatix.com) released Ultra High Power LED-405nm Light Source for Fluorescence

Microscopy

Based on a single monolithic chip Ultra High Power LED (>32Watt) Light
Source provides excellent homogenous illumination over whole field of view.
The Ultra High Power LED is an effective replacement of lasers and lamps in
many power demanding applications, such as fluorescence microscopy,
photostimulation, uncaging and numerous others.

This new member of the modular OptiBlocks family can be used with a full
range of other optical OptiBlocks such as fiber coupler, Liquid Light Guide
coupler, Beam Combiner, Filter Wheel, Beam Switcher and others.
The LED driver supports CW or TTL triggered operation as well as optional
analog input and USB control.

Key features:

•Compatible with Prizmatix modular Microscope-LED Light Source products
family •Fiber Coupler available •Liquid Light Guide availible •Single chip
Ultra High Power LED •Optically isolated TTL input for external triggering
•LED spectrum can be narrowed by optional band pass filter •Excellent for
fluorescence excitation •Stable precisely adjustable power •Long life (no
lamp or laser tube replacement required) •Speckle free •Rapid warm up time

Applications:

•Fluorescence Microscopy: Alexa 405, DyLight 405 •Whole body imaging of
small animals in-vivo •Photo activation (PA) and uncaging •Fluorescence
recovery after photo bleach (FRAP) •Inspection •Bio analysis •Machine vision

Optical Specifications :
Wavelength nm 405
Wavelength range nm ±5
Spectrum half width nm 15
Collimated optical power output >1.5Watt
Beam Aspect Ration 1:1.78

Benchtop LED Controller Specifications

Features:
•Constant current or chopping modes
•Precise LED current setting by 10 turn dial •TTL external trigger input
•Compact and robust enclosure •Analog Input (Optional) •USB interface to
computer control (Optional)


Contact
Prizmatix Ltd. 16 Or-Hahaim st., POB - 4234 Modiin Ilite 71919, Israel Phone: +972-8-929-7844 Fax: +972-8-929-8772

E-mail:sales@prizmatix.com

Web Site:www.prizmatix-led.com/uhp-mic-led-405.htm
