Gigahertz-Optik single-pulse LED measurement system for LED binning

Content Dam Leds En Ugc 2012 04 Gigahertz Optik Single Pulse Led Measurement System For Led Binning Leftcolumn Article Thumbnailimage File
34994 0 thumb Date Announced: 30 Apr 2012

Slight differences in LED characteristics can occur as a result of mass production. Sorting the LEDs into bin classes based on luminous flux and color properties provides a means of cataloging them. The LED manufacturer may do the binning or the party implementing the LEDs may self-bin them. For higher efficiency processing the LED is normally operated and measured in single pulse mode at a few millisecond long pulse width at a specified operating current.
Gigahertz-Optik has developed a cost effective measurement system consisting of the BTS256-LED tester and LPS-20-1500 LED power supply with S-BTS256 software to assist with single pulse LED binning.

Both meter, power supply and control software work in tandem to drive and measure the test LED in single pulse mode and record the results.

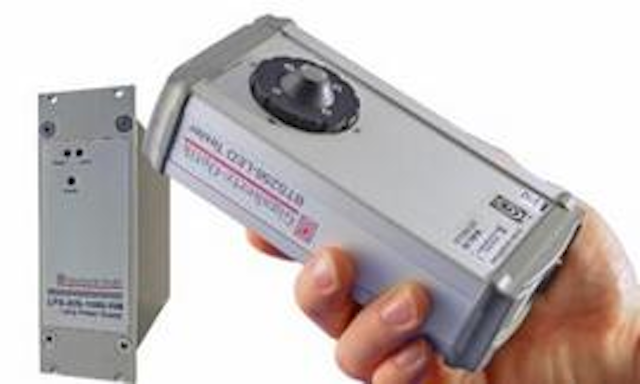

The BTS256-LED Tester is a compact measurement device designed for high accuracy measurement of luminous flux, spectral and color data of single assembled and unassembled LEDs in the visible spectrum. The BTS256’s bi-technology light sensor offers a fine photometric response photodiode for accurate wide dynamic range flux detection. Along with the integral detector a compact low stray light spectrometer is installed for spectral color measurements. The Bi-Tec sensor photodiode operates in fast data logger mode with 1ms sampling rate which can be used for pulse form profiling measurements. The BTS256-LED is powered through its USB adapter when connected to PC.

The LPS-20-1500 is a microprocessor-based current and voltage source especially designed for the operation of LEDs and other semiconductor light sources requiring low noise. The LPS20-1500 operates up to 1500mA with 30μA resolution and up to 24V with 0.5mV resolution. It is set-up for full remote control operation in CW or single pulse operation mode. Either current or voltage can be measured with high 16bit ADC resolution. Its I/O interface supports trigger-in and trigger-out operation in flash mode.

The S-BTS256-LED software supplied supports the set-up of the measurement device and source and the synchronized measurement.
Calibration and certification of the BTS256-LED tester is performed in Gigahertz-Optik’s ISO 17025 accredited optical radiation calibration laboratory.

Contact
Bob Angelo Gigahertz-Optik 978-462-1818

E-mail:LED@led-measurement.com

Web Site:www.gigahertz-optik.de/546-1-BTS256-LED+tester+for+LED+binning.html
