Magtech introduces compact 12W dimmable driver

Content Dam Leds En Ugc 2012 04 Magtech Introduces Compact 12w Dimmable Driver Leftcolumn Article Thumbnailimage File
34837 0 thumb Date Announced: 17 Apr 2012

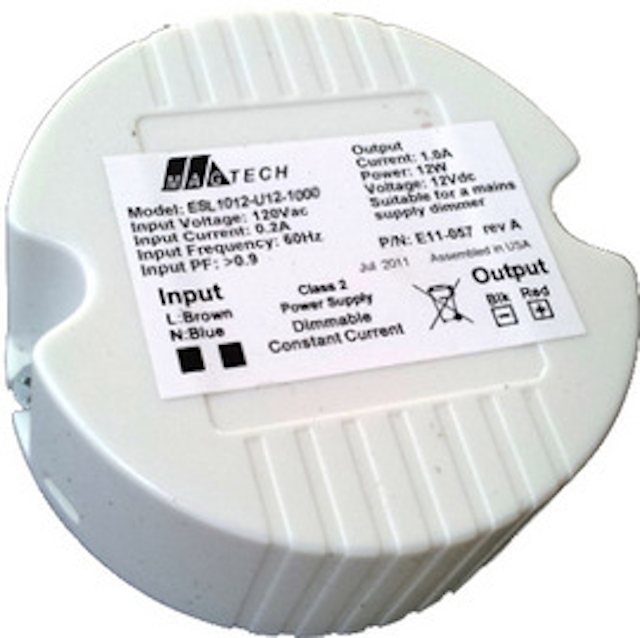

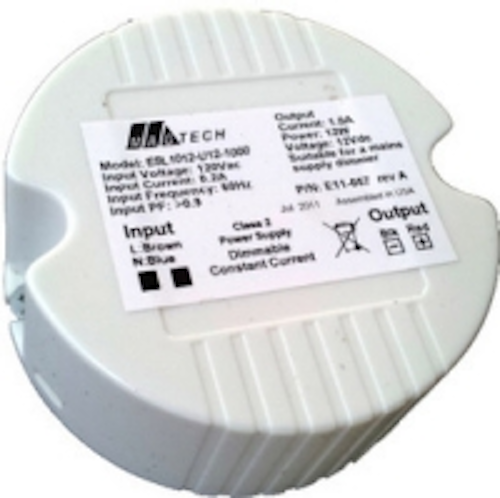

Las Vegas, Nevada - Magtech Industries, one of the pioneers of switching power supplies specifically for solid state lighting, has introduced their AC dimmable compact 12Watt driver, the ESL1012 Series.

ESL1012 Series of Drivers:

•Either 110VAC or 230VAC input
•12 Watts max
•Fully potted
•Suitable for dry and damp locations
•AC Phase dimmable: Compatible with Triac or ELV (Electronic Low Voltage) dimmers
•Compact size and low profile mechanical design that maximizes your design flexibility
•Only 2.59” (R) x 1.05” (H)
•Efficiency is ~82% typical
•Power Factor >0.9 at full load
•Tc max temperature 80°C
•Over current, over load, and short circuit protection
•MTBF >100,000 hours at full load and 25°C ambient conditions

Magtech will exhibit at Light Fair International, May 9 to May 11, 2012 at the Las Vegas Convention Center in Las Vegas, NV. Please visit us at booth 6646.

Magtech will exhibit at THE LED SHOW, July 31 to August 1, 2012 at the RIO Convention Center in Las Vegas, NV. Please visit us at booth 205.

For more information on Magtech Industries, go to http://www.magtechind.com
