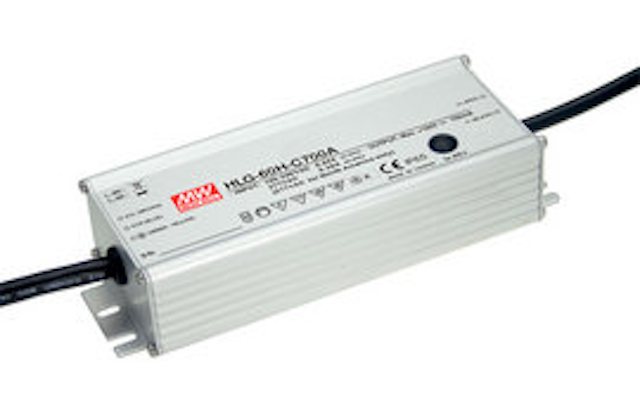

Mean Well launches 70W high-voltage LED power supply: HLG-60H-C

Content Dam Leds En Ugc 2012 07 Mean Well Launches 70w High Voltage Led Power Supply Hlg 60h C Leftcolumn Article Thumbnailimage File
36091 0 thumb Date Announced: 20 Jul 2012

MEAN WELL introduced the new 70W high efficient metal case LED power supply featuring with high output voltage and low current rating ~ HLG-60H-C series, to fulfill the demands of low to middle wattage LED lighting applications. With full range of 90~305VAC input, HLG-60H-C possesses 350mA (200VDC max. output) or 700mA (100VDC max. output) rated constant current, which are the most frequently used by lighting fixture designers. Considering the influence of dust and moisture from the outdoor/ indoor harsh environment, these new series are fully potted by glue (IP65/67 structure) and enclosed by aluminum case. Applying HLG-60H-C to the LED lighting fixture can connect numerous LEDs in one single strip up to the highest voltage rating of the driver. (Sum of Vf of the LEDs is not allowed to exceed the limit of output voltage.) Under this design, users don’t need to sort the Vf of LEDs but can still reach the perfect constant current as well as the long lifetime for the LED strips. Along with the launched low voltage and high current rated models~HLG-60H series, MEAN WELL can provide designers flexible driving ways, high voltage or low voltage, for all kinds of LED lighting applications.

With constant voltage (C.V.) plus constant current (C.C.) design, HLG-60-C series are built-in two-stage active PFC function and comply with harmonic current limitation per EN61000-3-2 Class C (>60% load). They also fulfill PF>0.9 if loading over 50% and possess 4KV surge immunity (EN61000-4-5) ability which complies with the requirements of street lighting. With up-to-date high efficiency topology, HLG-60-C possesses up to 91% of high efficiency, so it can be cooled by free air convection from -40℃ to +70℃ ambient temperature that meets the high temperature requirement of closed lighting system. Besides standard functions of protections for short circuit, over voltage, overload, and over temperature, these power units provide dimming options of “three-in-one dimming function “(B type) or “timer dimming function” (D type). Comply with global certificates per UL/ CUL/ TUV/ CB/ CE, including UL8750, EN61347-1, EN61347-2-13 of lighting regulations, your safety can be greatly guaranteed. Suitable applications include LED street lighting, LED tunnel lighting, LED spot lighting, LED decorative lighting, and other indoor/outdoor LED lighting…etc.

Features:
•Wide range input 90~305VAC
•Built-in active PFC function
•Aluminum case and potted by glue, comply with IP65/67
•Output current adjustable
•Meet 4KV surge immunity level (EN61000-4-5)
•91% high efficiency
•-40~+70℃working temperature
•Cooling by free air convection
•Protections: Short circuit / Overload / Over voltage / Over temperature
•Certificates: UL / CUL / TUV / CB / CE
•Dimension (LxWxH): 171x 61.5x 36.8mm
•5 years warranty

Contact
MEAN WELL ENTERPRISES CO., LTD

E-mail:info@meanwell.com

Web Site:www.meanwell.com
