Surface mount DC-DC LED driver provides output up to 700 mA

Content Dam Leds En Ugc 2012 06 Surface Mount Dc Dc Led Driver Provides Output Up To 700 Ma Leftcolumn Article Thumbnailimage File
35453 0 thumb Date Announced: 12 Jun 2012

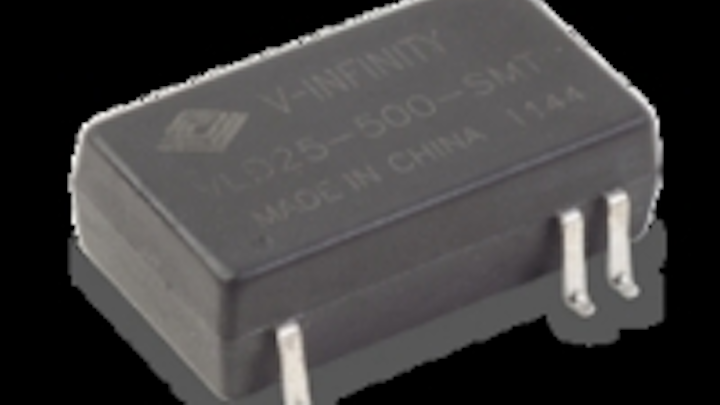

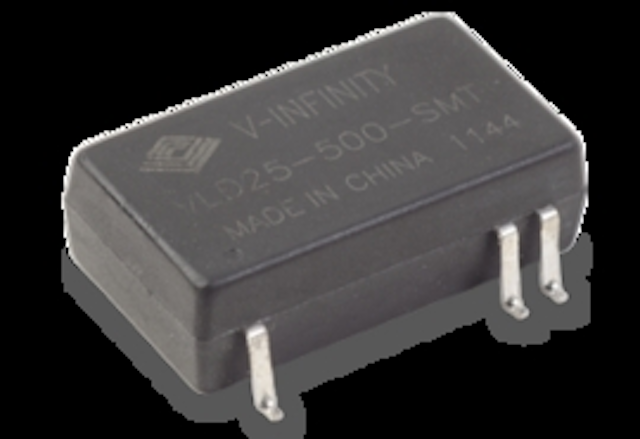

Tualatin, Ore. – CUI Inc announced the addition of a new surface mount series to its high efficiency, constant current dc-dc LED driver family. Designed to drive high power LEDs, the VLD25-SMT series provides efficiency levels of up to 96%, current accuracy of ±2%, and an ultra-wide input range of 5.5 to 48 Vdc. The series offers two means of LED dimming: PWM digital dimming and analog dimming control via a trim pot, making it ideal for applications where precise accuracy and brightness control is needed, including signage, transport, consumer electronics, and signaling.

The series is compact, measuring 0.94 x 0.54 x 0.30 inches in a 16-pin SMT package. Available output currents include 300, 350, 500, 600, and 700 mA with an output voltage range of 3.3 to 36 Vdc. The VLD25-SMT series has an ambient operating temperature range of -40°C to +85°C at full load in the 300 mA and 350 mA versions and -40°C to +71°C in the 500 mA, 600 mA, and 700 mA versions. Short-circuit protection and on/off control are standard features. The VLD25-SMT series is available immediately through Digi-Key starting at $7.95 for 1,000 pieces. For quantities over 1,000 pieces, please contact CUI directly for OEM pricing.

Summary
Product name: VLD25-SMT series
Availability: 5 weeks production
Possible users: LED applications where precise accuracy and brightness control is needed
Primary features: high efficiency, constant current dc output
Cost: $7.95 per unit at 1000 pcs through Digi-Key

Contact
800-275-4899

E-mail:sales@cui.com

Web Site:www.cui.com
