Opto Diode introduces IR surface-mount photodiode for medical diagnostics

Content Dam Leds En Ugc 2012 09 Opto Diode Introduces Ir Surface Mount Photodiode For Medical Diagnostics Leftcolumn Article Thumbnailimage File
36422 0 thumb Date Announced: 01 Sep 2012

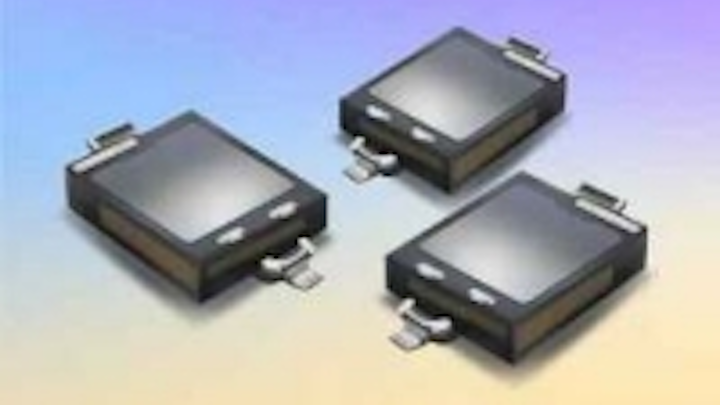

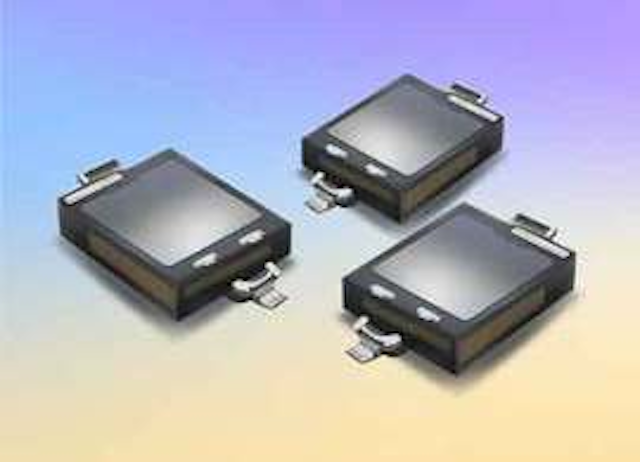

Opto Diode (www.optodiode.com), a division of ITW, and a member of the ITW Photonics Group, announces the second in the series of surface mount photodiodes, the ODD-900-002. With high sensitivity and short switching time, the low capacitance photodiode is ideal for use in a variety of medical diagnostic applications.

The surface-mount packaging allows for easy and convenient integration into new or existing systems. The device operates in the spectral bandwidth from 400 (min.) to 1100 (max.) nm, with a peak sensitivity of 940 nm. Typical responsivity is at 0.44 A/W with typical reverse dark current at 5 nA and total capacitance, typically at 25 pF.

Robust and flexible, the ODD-900-002 operating temperatures range from -25 degrees C to +85 degrees C. The device can be stored at temperatures ranging from -40 degrees C to +85 degrees C for added convenience. Similar to the recently introduced ODD-900-001 Surface Mount Photodiode with Daylight Filter, the new ODD-900-002 photodiode’s power dissipation is 150mW at (or below) 25 degrees C (free air temperature). Both new devices also feature a soldering temperature of 260 degrees C (soldering time is 5 seconds, maximum).

Opto Diode’s new surface mount photodiodes are available now and priced at $1.05 per 1000 (minimum order of 1000). For more information, please visit: http://www.optodiode.com/pro_07.html.

Contact
OPTO DIODE CORPORATION A Division of ITW 750 Mitchell Road, Newbury Park, CA 91320 Contact:Russell Dahl, General Manager Phone: 805-499-0335 x312 Fax: 805-499-8108 E-mail: russdahl@optodiode.com Web Site: www.optodiode.com
