• Ultra-efficient low-power 5630D HE (EU) for linear light designs achieves 180lm/W; • Flat low/mid-power 2835 (EU) series can be over driven for high efficiency in tubes and downlights; • High-power XI3030 (EU)series adds ultra warm white version
Shulin, New Taipei City – EVERLIGHT ELECTRONICS CO., LTD. [TSE:2393], a leading player in the global LED and optoelectronics industry, introduces two new low/mid-power LEDs especially suited for use in light tubes – retrofits and new designs – with excellent lm/w and lm/price characteristics.

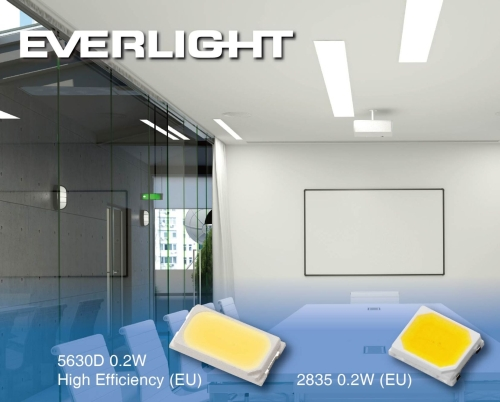

The EVERLIGHT 5630D HE (EU) is an ultra-efficient low-power LED (0.2W, capable of up to 0.5W operation) that excels with a high Lumen/Watt ratio ranging from 170 lm/W (warm white) to 180 lm/W (cool white) and achieves an outstanding 175 lm/W at 4000K. The 5630D High Efficiency low-power LED is primarily intended for linear light designs. With its optimized performance combined with the quality of light needed for linear light source applications, it provides an optimal solution to achieve 130lm/W or more in final product LED tubes. Other suitable lighting applications for the 5630D HE package include panels, downlights and bulbs. EVERLIGHT’s 5630D HE (EU) package (5.6 x 3.0 x 0.65 mm) is sampling and available in production quantities now.
The EVERLIGHT 2835 EU series (0.2W and 0.5W) is an upgrade from standard 3528 packages. Due to a newly designed heat slug, this LED maintains the compact size of 3.5 x 2.8 mm with a thinness of flat 0.7 mm but can be over driven to achieve a high efficiency of 116lm/W at 2700K warm white and 127 lm/W at 6500K cool white. Superior product characteristics and cost effectiveness turn this white LED device into a real cost and energy saver.
EVERLIGHT’s high performance low/mid-power 2835 series with a fabulous low Euro/Dollar per Lumen ratio is a top solution especially for tubes and downlights, eventually for any general lighting application. This new product is sampling and available in production quantities now.
Novelties in EVERLIGHT’s high-power LED portfolio include an extension of its popular compact and high lumen XI3030 1W series with an ultra warm white EU version (2200K-2400K) that replicates the warm color temperature of traditional incandescent or halogen lighting. This LED is ideal for use in candle lights and other bulbs to create natural warm white lighting environments. With an efficiency of 90 lm/W or more, the EVERLIGHT XI3030 Ultra WW (EU) 1W LED series provides a favourable lumen/cost option for many applications. This new product sampling now and will be available in production quantities in Q1/2015.
Natural Light Technology
The standard versions of these three new components with a minimum CRI of >80Ra will be complemented by Natural Light Technology versions with a >CRI 95Ra, averaging 98Ra in due time.
More information or data sheet for this product upon request: Please contact your local EVERLIGHT sales office.
About EVERLIGHT Electronics Co. Ltd.
EVERLIGHT Electronics Co., Ltd. was founded in 1983 in Taipei, Taiwan.
Playing a critical role in the formation of the global LED industry, the company has rapidly become a leading worldwide supplier due to its dedication to certification, R&D, production, quality, marketing and global customer service. EVERLIGHT provides a comprehensive optoelectronics product portfolio consisting of high power LEDs, lamps, SMD LEDs, LED lighting modules, digital displays, optocouplers and infrared components for various applications. Today, EVERLIGHT is a global company with over 6,400 employees based in China, Hong Kong, Japan, Korea, Singapore, Malaysia, Germany, Sweden, U.S., and Canada.
Everlight Electronics Europe GmbH
