Signage lighting, Under-counter lighting, Decoration lighting…The applications are endless with ATG Electronics oSignage WP3 LED Modules.

Content Dam Leds En Ugc 2008 04 Signage Lighting Under Counter Lighting Decoration Lighting The Applications Are Endless With Atg El Leftcolumn Article Thumbnailimage File
16164 0 thumb Date Announced: 28 Apr 2008

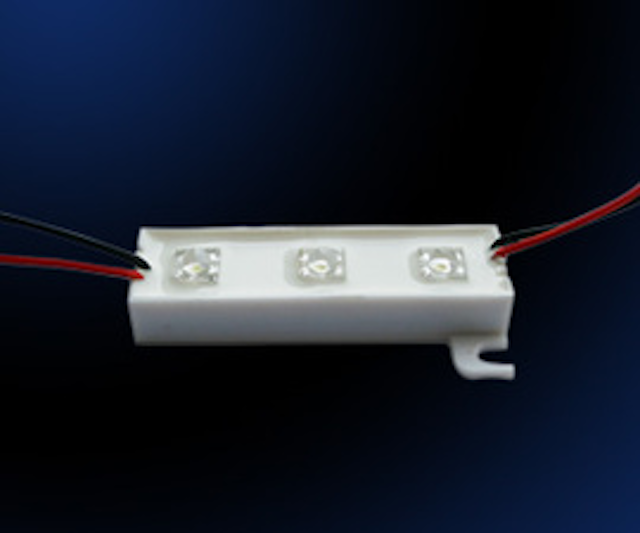

ATG Electronics® oSignage™ WP3 LED Modules are designed for signage lighting and decoration, both indoor and outdoor are applicable; they are ideal alternatives to neon or fluorescent tubes. Color is available in red, yellow, blue, green, white.
oSignage™ WP3 is oblong shape, with 3LEDs in, and available in solid colors and 12VDC input.
oSignage™ WP3 can be easily installed onto the surface of the channel letters with the 3M double-sided sticking tape on the back. The red-black power cable between each module is 100mm(3.94 inch) long; they can be cut and powered up at every one piece or re-connected to apply specific length.
oSignage™ WP3 is IP68 rated, can be submerged into water. When dimming function needed, you can install our QColor™ Remote Dimmer on the main cable.
oSignage™ WP3 is the ideal products to light up channel letters, signboards, besides, they can be used for under-counter lighting or decoration lighting. They have been successfully used in homes, hotels, restaurants, stores, shops and clubs etc.

Technical Specifications:
-LED Qty: 3LEDs
-Operation Voltage: 12VDC
-Lumens ( one pcs): 3.06 lm(Red), 3.15 lm(Yellow), 3.3 lm(Blue), 10.8 lm(Green), 11.4 lm(White)
-Power Consumption: 0.24 W
-Beam Angle: 80 degree
-Dimension: L3000*W11*H2 mm (L2.4*W1.4*H0.47 inch)
-IP Rating(Work environment): IP68 (submersible)

Features & Benefits:
-High brightness with ultra bright LEDs in high intensity;
-Easy installation with 3M double-sided sticking tape;
-Long life span of 50,000 hours with little heat, high quality LEDs and proper drive characteristics;
-With IP68 degree, ideal for indoor and outdoor applications;
-Safety and stable with low voltage (12VDC);
-Energy saving with low power consumption.

Recommended Applications:
-Signage lighting (channel letter lighting, reverse channel letter lighting, signage back lighting etc) for your business purpose;
-Under-counter lighting for your cabinets, cupboards etc in your homes, restaurant and any other places where you need accent lighting;
-Decoration lighting for your homes, hotels, restaurants, stores, shops, clubs, bars etc.

Contact
ATG Electronics Corp. ---Think Green, Act Green. International Sales Department Tel: +86-21-33932667 Fax: +86-21-33932677

E-mail:sales@atgelectronics.com

Web Site:www.atgelectronics.com
