Isolated active PFC off-line LED controller is TRIAC dimmable and needs no OPTO isolator

Content Dam Leds En Ugc 2011 02 Isolated Active Pfc Off Line Led Controller Is Triac Dimmable And Needs No Opto Isolator Leftcolumn Article Thumbnailimage File
30867 0 thumb Date Announced: 02 Feb 2011

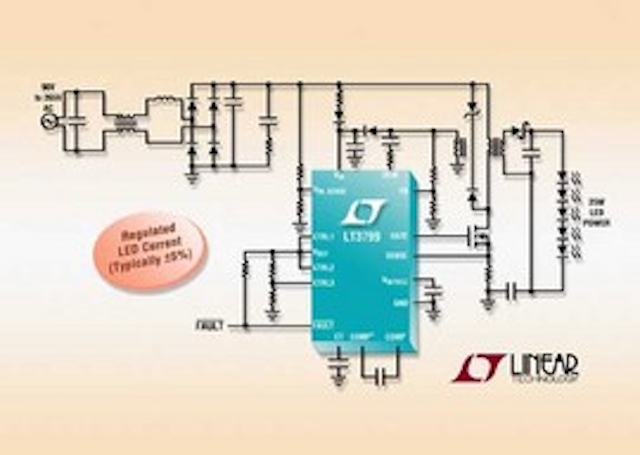

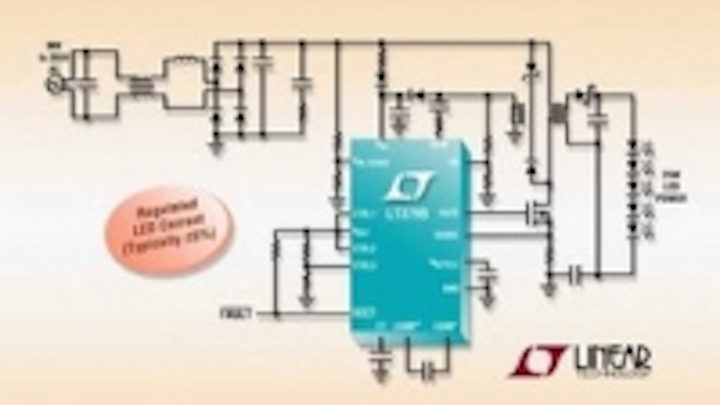

Milpitas, CA – Linear Technology announces the LT3799, an isolated LED controller with active power factor correction (PFC), specifically designed for driving LEDs from a universal input range of 90VAC to 265VAC. The LTC3799 is optimized for LED applications requiring 4W to over 100W of LED power and also compatible with standard TRIAC in-wall dimmers. The LT3799’s unique current sensing scheme delivers a well regulated current to the secondary side without using an opto-coupler. This not only reduces cost but also improves reliability. It’s single stage PFC regulator design requires minimal external components. Additionally, it’s thermally enhanced MSOP-16E package ensures a simple and compact solution footprint for off-line LED applications.

The LT3799 offers over 86% efficiency, eliminating the need for external heat sinking of the LED driver IC in most applications. Special internal circuitry provides active PFC of up to 0.977, easily meeting industrial Department of Energy (DOE) requirements while also complying with the IEC 61000-3-2 Class C Lighting Equipment Harmonics requirement. The LT3799 can be used with a standard in-wall TRIAC dimmer without any visible flicker. Open and shorted LED protection ensures long-term reliability for a wide range of LED applications.


The LT3799EMSE is available in a thermally enhanced 16-pin MSOP package.

Pricing starts at $2.25 each in 1,000-piece quantities and is available from stock. An extended temperature version, or “I” grade, the LT3799IMSE is also available from stock, priced starting at $2.59 each in 1,000-piece quantities. For more information, visit www.linear.com.

Contact
John Hamburger, Director Marketing Communications jhamburger@linear.com Tel 408-432-1900 ext 2419 Doug Dickinson, Media Relations Manager 408-432-1900 ext 2233

E-mail:ddickinson@linear.com

Web Site:www.linear.com
