LInear 32-channel 30mA buck LED driver with DOT correction & gray-scale dimming

Content Dam Leds En Ugc 2011 04 Linear 32 Channel 30ma Buck Led Driver With Dot Correction Gray Scale Dimming Leftcolumn Article Thumbnailimage File
31332 0 thumb Date Announced: 26 Apr 2011

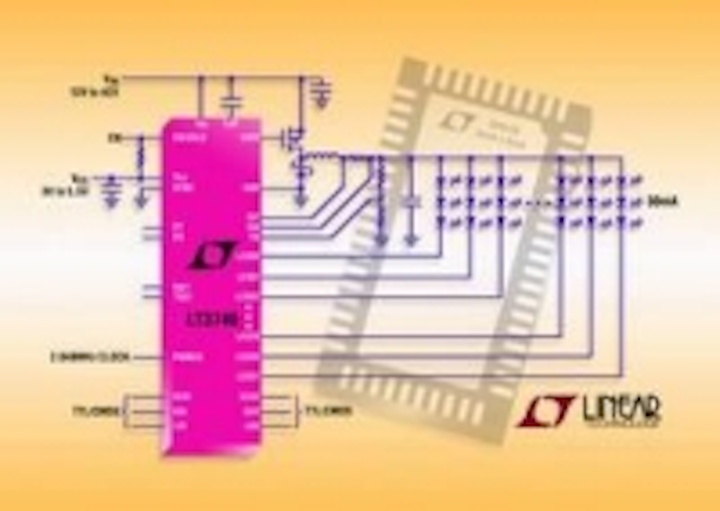

Linear Technology announces the LT3746, a 32-channel LED driver integrated with a 55V step-down controller.

This LED driver powers up to 30mA of LED current for each channel, which can drive up to 13V of LEDs in series, making it ideal for applications such as large LED billboards.

Each channel has individual 6-bit dot correction current adjustment and 12-bit gray scale PWM dimming. Combined with a 0.5µs minimum LED on-time, the LT3746 offers very wide dynamic contrast ratios. Both dot correction and gray scale dimming are accessible via a serial interface in TTL/CMOS logic.

The LT3746’s 6V to 55V input voltage range makes it ideal for a wide range of input sources found in commercial and industrial designs, typically between 12V and 48V.

The combination of minimal externals and a 5mm x 9mm QFN package provide a highly compact solution footprint for multichannel LED applications.

The LT3746’s internal buck controller generates an adaptive bus voltage slightly higher than the parallel LED strings to deliver efficiencies over 90%. 32 individual linear current sinks regulate and modulate individual LED strings, offering a wide range of functionality in a compact solution footprint.

The LT3746 performs full diagnostics and protection against open/short LED and overtemperature faults, with the fault status sent via the serial data interface. The 30MHz fully buffered, skew-balanced, cascadable serial interface makes the LT3746 ideal for large screen LCD dynamic backlighting as well as full color LED displays.

The LT3746EUHH is available in a 56-lead 5mm x 9mm QFN package priced starting at $4.95 each, in 1,000-piece quantities.

The extended temperature version the LT3746IUHH, or I-grade, is also available, priced starting at $5.45 each in 1,000-piece quantities. All versions are available from stock.

For more information, visit www.linear.com/product/LT3746.
