Ecopac Power launches the 320 watt HLG-320H series

Content Dam Leds En Ugc 2011 09 Ecopac Power Launches The 320 Watt Hlg 320h Series Leftcolumn Article Thumbnailimage File
32410 0 thumb Date Announced: 07 Sep 2011

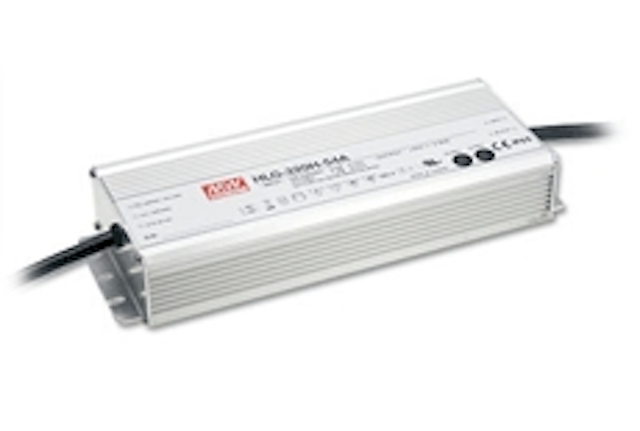

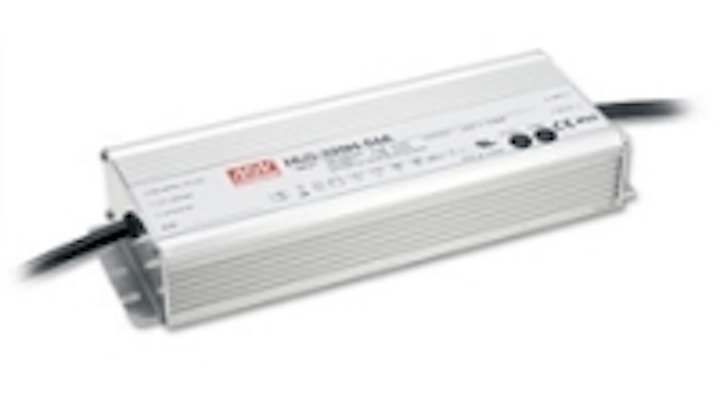

These high efficiency metal case LED power supplies meet the demand for high wattage enclosed power supplies. With a wide range AC input of 90 - 305VAC the HLG-320H series not only operates with UK and European 115VAC or 230VAC mains input, but also operates with North American 277VAC input

With IP ratings up to IP67 these Mean Well HLG-320H series are designed with five options the HLG-320H-A, HLG-320H-B, HLG-320H-C, HLG-320H-D and HLG-320H blank, all HLG series power supplies are manufactured with a 5 year warranty.

For LED designs and applications the Mean Well HLG-320H-A series allows users to adjust the DC output voltage range from 90% to 110% and the output current range from 50% to 100% via the internal potential meter.

The HLG-320H-B series has been designed by Mean Well to allow 3 types of dimming function from 1 - 10VDC, a pulse width modulation (PWM signal) and a resistance.

The HLG-320H-C series is supplied with terminal blocks for the input and output connection and users can also adjust the DC output voltage range from 90% to 110% and the output current range from 50% to 100% via the internal potential meter.

The HLG-320H-D series is manufactured to order by Mean Well and come supplied with a “multiple stage timer dimming” function this option is programmed directly by Mean Well to the customers’ requirement.

All of the HLG-320H series supplied by Ecopac Power come with a 5-year warranty and using up-to date LLC topology and synchronous rectifier technology Mean Well have designed the HLG-320H series with up to 95% of high efficiency, the whole range of HLG-320H power supplies can operate from -40°c to +70°c ambient temperature.

Standard functions include protections for short circuit, over voltage, overload, and over temperature. In addition the HLG-320H series meet 4KV surge immunity level (EN61000-4-5) With a built-in active PFC function that complies with EN61000-3-2 harmonic Class C (>50% load)

These high efficiency Mean Well power supplies available from Ecopac Power are also excellent solutions for applications that require power supplies to operate in very harsh environments. The metal aluminium casing and potting make the HLG-320H series suitable for outdoor environments that have high dust and moisture.

All of the HLG-320H series comply with global certificates per UL/CUL/TUV/CB/CE including UL8750, EN61347-1, and EN61347-2-13 lighting related regulations.

Ecopac (UK) Power Ltd Unit 4, Ridgeway, Crendon Industrial Area, Long Crendon, Bucks HP18 9BF Tel: +44 1844204420
