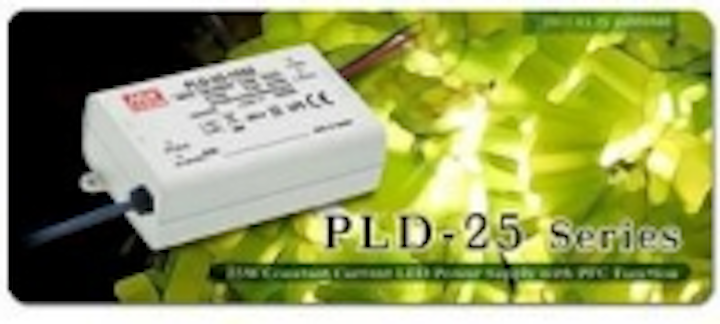

Mean Well introduces PFC constant current mode 25W LED power supply~PLD series

Content Dam Leds En Ugc 2011 03 Mean Well Introduces Pfc Constant Current Mode 25w Led Power Supply Pld Series Leftcolumn Article Thumbnailimage File
30812 0 thumb Date Announced: 28 Mar 2011

After the launch of non-PFC constant current (C.C.) mode models LPHC/LPLC-18(18W), LPC-20(20W), LPC-35(35W), and LPC-60(60W), MEAN WELL continuous to introduce another 25W AC/DC plastic case LED power supply with active PFC function and C.C. output~PLD-25 series, to fulfill the lower wattage demand as well as PFC function requirement of LED indoor/ decorative lighting market. With 90~295VAC wide AC input range, PLD-25 series not only can be used in 115VAC or 230VAC utility power regions, but also fulfill the usage of 277VAC mains power in North America.

Thanks to the simplified single stage PFC topology, the required high power factor (PF>0.9) can be achieved economically. Efficiency of PLD-25 series are as high as 86% and hence can operate between -30 ~ +60℃ by only free air convection. With two wires input design (Class II, no FG), these LED drivers enclosed by plastic case with 94V-0 fire resistance level, which can greatly protect users against dangerous electric shock. Other standard functions include short circuit, over load, and over temperature protections. Besides, the new models equipped with 7.5cm/ 18AWG and 15cm/ 18AWG of input/output wires which allow users a flexible installation in various systems. Both series comply with global lighting certificates per UL8750 and EN61347, CE (EN55015 and EN61547), and FCC Part 18, which are perfectly suitable for LED-based indoor lighting and decorative lighting applications.
Features:
1.Wide range input 90~295VAC
2.Built-in active PFC function
3.Constant current output: 350mA / 700mA / 1050mA / 1400mA
4.High efficiency up to 86%
5.Cooling by free air convection
6.UL 94V-0 plastic case
7.Class II design, no FG
8.Protections: Short circuit / Overload / Over temperature
9.Approvals: CE / FCC
10.Dimension(LxWxH): 84x 57x 29.5mm
11.3 years warranty

Contact
MEAN WELL ENTERPRISES CO. LTD

E-mail:info@meanwell.com

Web Site:www.meanwell.com
