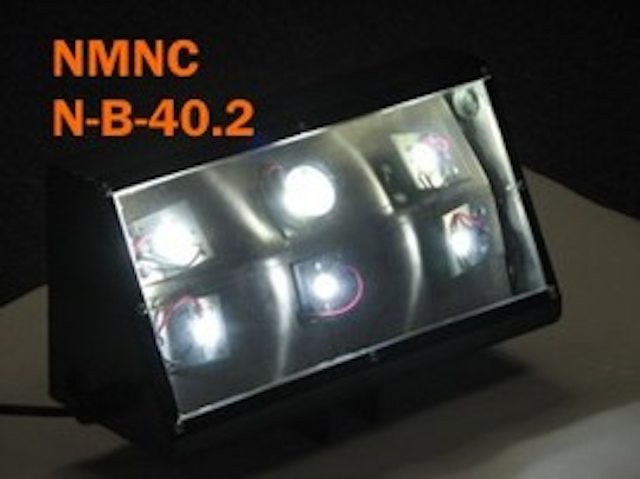

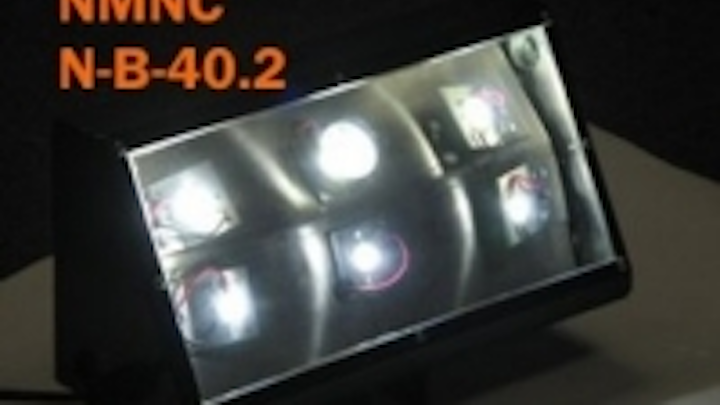

NMNC 40-watt billboard or wall LED lighting fixture

Content Dam Leds En Ugc 2011 03 Nmnc 40 Watt Billboard Or Wall Led Lighting Fixture Leftcolumn Article Thumbnailimage File
30650 0 thumb Date Announced: 16 Mar 2011

PN# N-B-40.2W
New NMNC low voltage LED Billboard solar lighting fixture system.
Features fabricated aluminum, 40.2 watts per fixture, designed for low voltage DC solar applications with powder coated finish.
High output LED's with 5 year manufacture warranty, 3 year warranty on drivers
5000 hours of illumination

12 Volt or 24 Volt DC 40.2 Watt Bright White LEDS captured around a multiple angled lighting design.
All Aluminum Fixture for best heat dissipation along with top and bottom venting.
Custom aluminum machined led light bezel held in with S.S. tamper proof machined screws.
Clear unbreakable1/4” thick lexan lens is durable and shock resistant.
The PN# N-B-40.2 can be mounted in two positions vertical and horizontal with a 5 degree adjustment positive or negative, and mounts to a 2” x 2” square tube.
The fixture foot print is 16” x 8” x 6” Formed Heavy Aluminum
The illumination matrix is based on 5000K bight white LED’s 40.2 watt DC load 8ft away from the wall.
Sizing the solar system is important so no off the shelf solar package will be sufficient. NMNC will take down all the data pertaining to you location and State we can put together a solar system for you.

PN# Lamp Type Watts Input Volts Forward Curent LED Color Flux
N-B-40.2 Surface Mount 40.2 12 volts DC 700ma 350ma Bright White 5000K
N-B-40.2 Surface Mount 40.2 24 volts DC 700ma 350ma Bright White 5000K
N-B-40.2 Surface Mount 40.2 110 volts AC 700ma 350ma Bright White 5000K
Available 66 watts others

Contact
National Mfg. Company Orlando Vargas San Diego, CA 92064 760-828-0480 http://www.natlmn.com

E-mail:ovargas@natlmn.com

Web Site:www.natlmn.com
