Nordson Asymtek fluid dispensers jet precisely into narrow cavities to improve side-view LED manufacturing process

Content Dam Leds En Ugc 2011 03 Nordson Asymtek Fluid Dispensers Jet Precisely Into Narrow Cavities To Improve Side View Led Manufac Leftcolumn Article Thumbnailimage File
30577 0 thumb Date Announced: 07 Mar 2011

Nordson ASYMTEK, a leader in dispensing, coating, and jetting technologies, introduces jet dispensing for manufacturing side-view LEDs. The system jets 0.1 to 0.2 mm dots through windows as small as 0.4 mm into the LED cavities. Side-view LEDs illuminate the displays in devices such as tablet computers, smart phones, and e-readers.

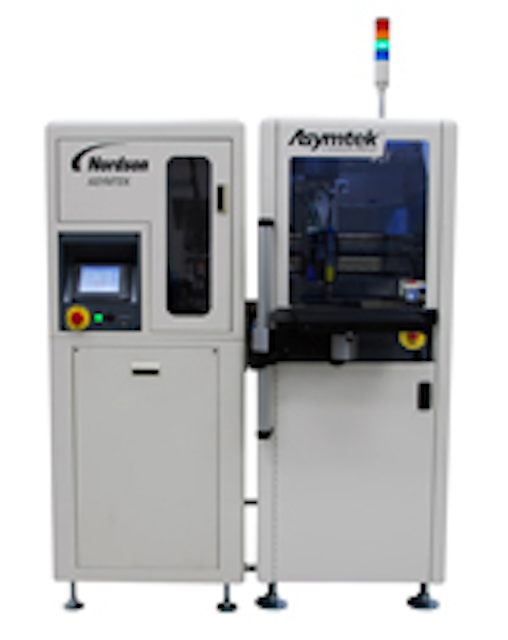

Nordson ASYMTEK's Spectrum™ S-920N jetting system automatically maintains a consistent shot weight with software-managed dispense parameters. Closed-loop dispensing eliminates the need for time-consuming operator adjustment. Unlike other multi-headed needle dispensing systems, Nordson ASYMTEK’s system is easier to set up and maintain in production, keeping your process under machine control.

"Consistent dispensing weight improves process capability while ensuring higher UPH (units per hour)," said Akira Morita, business development manager at Nordson ASYMTEK. "Using CPJ+ (calibrated process jetting plus), the process variability is reduced for tight LED color quality. This patented, technologically advanced software and hardware control reduces process variation, increases yield, and reduces cost."

The system uses a jet for non-contact dispensing. Unlike a needle, the jet retracts much less for silicone break off and therefore shoots multiple shots faster, increasing speed and throughput. The jet’s small, controlled drops of fluid reach tight cavities consistently and reliably, unlike needles which have orifices larger than the cavity windows of side-view LEDs.

"As these LED devices get slimmer, the challenge to dispense specialized fluids, like silicone phosphor, into these tight spaces becomes greater," explained Morita. "Nordson ASYMTEK's dispensing system overcomes these challenges."

Visit Nordson ASYMTEK at SEMICON China booth #2437

About Nordson ASYMTEK
Nordson ASYMTEK, a world leader in precision automated fluid dispensing, conformal coating, and jetting technologies, designs and manufactures a full line of dispensing and coating systems, supported by a global applications and service network. Recognized for its innovative equipment and excellent service, Nordson ASYMTEK continues to offer advanced dispensing solutions for a range of precision assembly processes. These include semiconductor packaging, printed circuit boards, LEDs, flat panel displays, medical and biotechnical devices, and solar and photovoltaic products. Nordson ASYMTEK is an ISO 9001:2008 certified company and has received numerous awards for its service excellence and product innovations. For more information, visit www.nordsonasymtek.com or www.twitter.com/NordsonASYMTEK.
