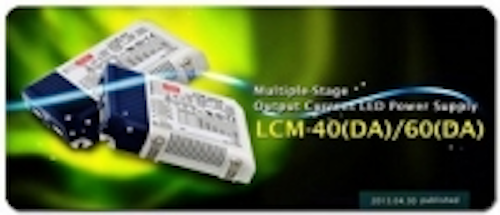

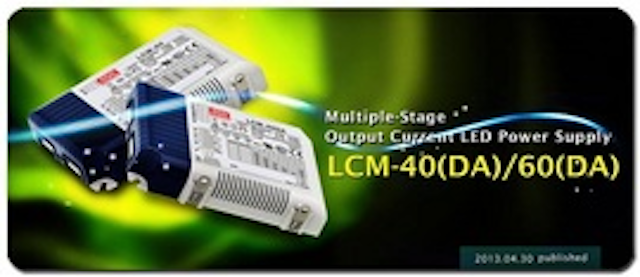

Mean Well launches LCM-40(DA)/60(DA) multi-stage LED power supply:

Content Dam Leds En Ugc 2013 04 Mean Well Launches Lcm 40 Da 60 Da Multi Stage Led Power Supply Leftcolumn Article Thumbnailimage File
38245 0 thumb Date Announced: 30 Apr 2013

In response to the demands of intelligent LED lighting control and to provide a flexible power solution for project style lighting design, MEAN WELL introduced 40W/60W multiple-stage output current LED power supply~ LCM-40(DA) and LCM-60(DA) series. With “constant current output” design, the output current level can be flexibly selected by the built-in DIP switch. The basic models, LCM-40 and LCM-60, are designed with “2-in-1” dimming function (0~10Vdc and PWM signal), while the digital control models, LCM-40DA and LCM-60DA, are built-in DALI interface and push dimming function. These launched units can fulfill the increasing demands of intelligent digital dimming applications. Featuring with 180~295 VAC and built-in two stage PFC function, these new series comply with harmonic current limitation per EN61000-3-2 Class C (>35% load) and also fulfill PF>0.9 if loading over 35%. In addition, they possess 2KV surge immunity ability (EN61000-4-5, heavy industry level) between Line and Neutral, which complies with the related lighting requirements.

With up-to date high performance circuit topology, LCM-40(DA)/60(DA) possess up to 91.5% of high efficiency, so they can be cooled by free air convection from -30℃ to +60℃ ambient temperature. Built-in temperature compensation function, by connecting an external temperature sensor (NTC resistor) between the NTC+/- terminals, the output current could be correspondingly changed with the detected temperature to ensure the long lifetime of LEDs. In addition, they equip with synchronization dimming function that can operate 10 drivers (max.) synchronously in response to the dimming control signal of LED lighting systems with multiple lighting fixtures. LCM-40(DA)/60(DA) are rectangular and low profile (23mm) plastic enclosed power supplies. Different from the general design with input in front and output in rear, the I/O connection of these new models are changed to the same side, which allows system designer a more convenient wiring installation. Other standard functions include Class II design (no F.G.), built-in 12V/ 50mA auxiliary output (for driving fan), protections for short circuit, over voltage, and over temperature. All of them comply with certificates per UL8750, ENEC EN61347-2-13, and EN62384 of lighting regulations. LCM-40DA and LCM-60DA also comply with IEC62386-101, 102, 207 norms per DALI lighting control systems. Suitable applications include LED commercial lighting, office lighting, indoor LED decorative lighting…etc.

Feature:
1.Output current level selectable by DIP switch
2.180~295VAC input range
3.Built-in active PFC function
4.Protections: short circuit, over voltage, over temperature
5.Cooling by free air convection
6.Fully insulated plastic case, IP 20 design
7.Class II power unit, no FG
8.Built-in 0~10VDC and PWM signal dimming function (LCM-40/60)
9.Built-in DALI interface and push dimming function (LCM-40DA/60DA)
10.Built-in NTC temperature compensation function
11.Built-in 12V/50mA auxiliary output for fan
12.No load power consumption < 1W for LCM-40/60; <1.2W for LCM-40DA/60DA
13.Power supply synchronization function up to 10 units
14.Dimension(LxWxH): 123.5x 81.5x 23mm
15.3 years warranty
