Green Watt Power's GLV75 LED power supply achieves 200,000-hr MTBF

Content Dam Leds En Ugc 2013 07 Green Watt Power S Glv75 Led Power Supply Achieves 200 000 Hr Mtbf Leftcolumn Article Thumbnailimage File
38755 0 thumb Date Announced: 02 Jul 2013

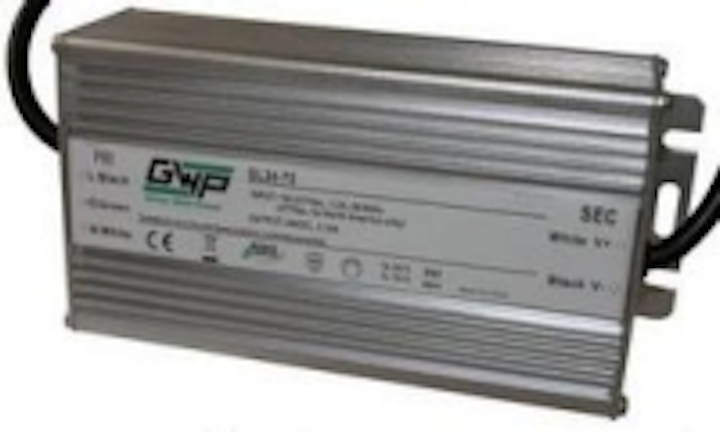

75 Watt constant voltage LED power supply

Green Watt Power, a division of Calex Mfg. Co., Inc. based out of Concord, California, announces the availability of the GLV75 constant
voltage LED power supply. The GLV-24-75 is a 24 Volt output 3.15A fully encapsulated IP67 rated power supply, ideal for LED lighting applications requiring that voltage and current rating. The GLV-24-75 is protected by overvoltage protection, short circuit protection with
auto recovery, over temperature protection and backed by Green Watt Power’s Five Year Warranty for years of reliable performance. The MTBF for the GLV75 is 200,000 hours.

The GLV-24-75 has a universal input range of 100 to 277VAC. The power factor is 0.95. The efficiency of the unit is 86% typical with a full load input current of 1.2A with a 110VAC input. The noise and ripple is 360mV peak to peak. Load regulation is 2%. The GLV-24-75 setup time is 3 seconds. Rise time is 200 milliseconds. The voltage range tolerance including setpoint tolerance, line regulation and load regulation is +/-5%.

The operating temperature range is -35 to +70°C ambient. The storage temperature range of the GLV-24-75 is -40 to +85°C ambient. The GLV75 case size is 8.98” x 2.83” x 1.73”. The unit weight is 0.4Kg. Units are available from stock to 10 weeks. Contact the factory for pricing. Calex’s corporate headquarters are located
at 2401 Stanwell Drive, Concord, CA 94520 USA.

Contact
Green Watt Power 800-542-3355 / 925-687-4411

E-mail:sales@greenwattpower.com

Web Site:www.greenwattpower.com/75CV.html
