Mean Well introduces 40W AC/DC LED power supply

Content Dam Leds En Ugc 2013 09 Mean Well Introduces 40w Ac Dc Led Power Supply Leftcolumn Article Thumbnailimage File
39311 0 thumb Date Announced: 25 Sep 2013

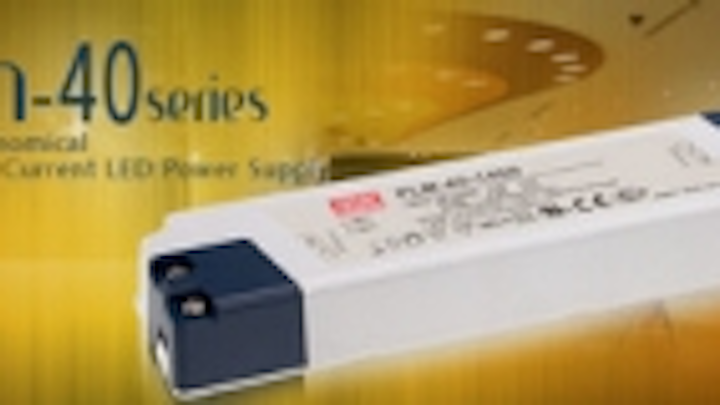

MEAN WELL introduced 40W AC/DC economical LED power supply - PLM-40 series, to fulfill the cost-saving requirement of LED lighting market. Featuring 110~295VAC input range, these new units have 6 kinds of constant current outputs from 350~1750mA for selection. With single stage PFC circuit design, PLM-40 series is a cost effective power solution to reach high PF value (PF>0.9). They also comply with harmonic current limitation per EN61000-3-2 Class C, and fulfill the general lighting requirements. Full series feature no load power consumption <0.5W and set up time < 500ms, which comply with the ErP regulations required by European Union for lighting fixtures.

PLM-40 series possess up to 88% of high efficiency, so that they can work between -30~+45°C by only free air convection, which fulfill the demands of high temperature working environment in closed lighting system. Enclosed by UL 94V-0 rated plastic case and Class II AC input design (two wires, without FG), these units can effectively prevent users from electrical shock. Different from the general wire-style I/O connection, PLM-40 series are designed with screw-less push clamp terminal block, which allows users a more convenient wiring installation. Other standard functions include short circuit and over temperature protections. In addition, full series comply with global certificates per ENEC EN61347-2-13, EN62384, UL8750, CB, and CE lighting related regulations, which can greatly guarantee your operation safety. Suitable applications include all kinds of indoor LED lighting, office lighting, commercial lighting, and indoor LED decorative lighting...etc.

- 110~295VAC universal AC input
- Constant current design (C.C. mode): 350/500/700/1050/1400/1750mA
- Built-in active PFC function
- No load power consumption < 0.5W
- Set up time <500ms
- 88% high efficiency
- Plastic case with 94V-0 fire prevention level
- I/O push clamp terminal block
- Isolation class II, no FG
- Cooling by free air convection
- Working temperature:-30~+45°C
- Protections: Short circuit / Over temperature
- Certificates: UL / CUL / ENEC / CB / CE
- Dimension (LxWxH): 175x 42x 24mm
- 2 years warranty

Mean Well Enterprises Co., Ltd
