Oslon Black Flat LED is now offered as two-chip SMT component

Content Dam Leds En Ugc 2013 09 Oslon Black Flat Led Is Now Offered As Two Chip Smt Component Leftcolumn Article Thumbnailimage File
39265 0 thumb Date Announced: 23 Sep 2013

Sunnyvale, CA

Oslon Black Flat LED now offers two chips

New compact Osram LED for automotive headlights provides higher performance and SMT capability

Osram Opto Semiconductors has introduced a new 2-chip version of the Oslon Black Flat LED. As with other LEDs from the Oslon Black Flat family, the new version features a high level of brightness and is suitable for all headlight functions. The major advantage of the new LED is that, as an SMT component, it can be attached directly to the PCB and then processed with other components as part of a standard soldering process. The simplicity of this implementation translates into significant cost and time savings during further processing.

Thanks to UX:3 chip technology, the new Oslon Black Flat features a very high light output even with high currents, achieving over 500 lumens at 1 ampere. The high brightness level of the new LED is emitted from a very compact package with dimensions of 3.1 mm x 3.75 mm with a height of 0.5 mm. “With the new Oslon Black Flat, we're bringing into our portfolio a significantly slimmer LED than the previous version to enable even more compact headlight systems,” explained Michael Martens, LED Product Marketing Manager at Osram Opto Semiconductors. The new 2-chip LED is suitable for all headlight functions such as low beams and high beams, fog lamps and is ideally suited for daytime running lights with light guides, where optical incoupling is key.

Cost savings with Surface Mount Technology (SMT)
As a surface mountable component, the new Oslon Black Flat is, like other electronic components, simply attached to a circuit board and processed as part of standard soldering operations. “This soldering capability enables integration of the LED into a simple, standardized process and reduces the complexity of the processing steps, which saves a good deal of time and costs,” said Martens.

Oslon Black Flat – good stability and homogeneous light distribution
Further benefits of the Oslon Black Flat LEDs are their homogeneous distribution of light, very good contrast ratio and cyclic stability. The black QFN (Quad Flat No Leads) housing expands in a similar manner to the circuit board during high temperature cycle loads. As a result, soldered joints are considerably stronger and exposed to much less strain.

A special sealing technology, together with the sophisticated package and a ceramic phosphor converter, enables a highly uniform distribution of light as well as good contrast conditions on roads. This is abetted by the chip encapsulation which allows you to achieve a defined bright/dark border in the light beam, as well as the high contrast of the luminous surface of both chips in relation to the package.

Samples of the Oslon Black Flat are available now, and volume start-up is planned for the beginning of 2014. See the product catalog for further information about the Osram Oslon Black Flat product range.

Oslon Black Flat (KW H2L531) technical data:
Footprint 3.1 mm x 3.75 mm x 0.5 mm
Brightness > 500 lm at 1A
Typical electrical thermal resistance 1.2 K/W
Chip technology UX:3, Rth improved
Chip-to-chip distance 100 μm (0.1 mm)
Package QFN multichip LED

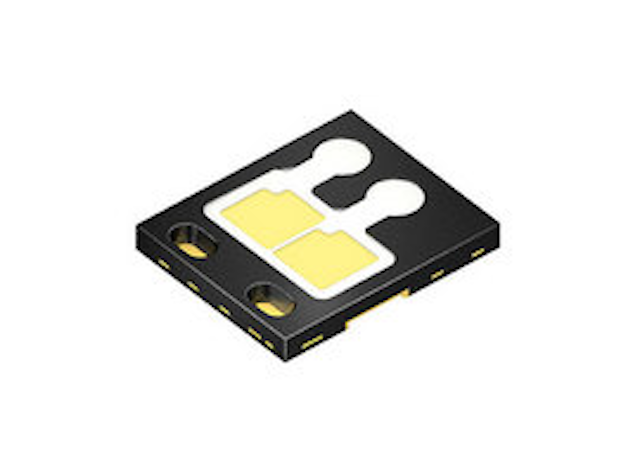

The Oslon Black Flat LED is now available in a two chip configuration.
Picture: Osram

Cyclic thermal stability, homogeneous light distribution, small package dimensions and more: the new 2-chip LED from Osram Opto Semiconductors lines up with a wealth of advantages.
Picture: Osram

http://www.osram-os.com/pr-oslon-black-flat


ABOUT OSRAM OPTO SEMICONDUCTORS

OSRAM GmbH of Munich, Germany is one of the two leading light manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. Osram Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale (USA), and for Asia in Hong Kong. Osram Opto Semiconductors also has sales offices throughout the world. For more information go to www.osram-os.com.
