Magtech super-compact M-series AC-dimm+ TM for LED down-lighting triac dimmable

Jan 27th, 2013
Content Dam Leds En Ugc 2013 01 Magtech Super Compact M Series Ac Dimm Tm For Led Down Lighting Triac Dimmable Leftcolumn Article Thumbnailimage File
Date Announced: 27 Jan 2013

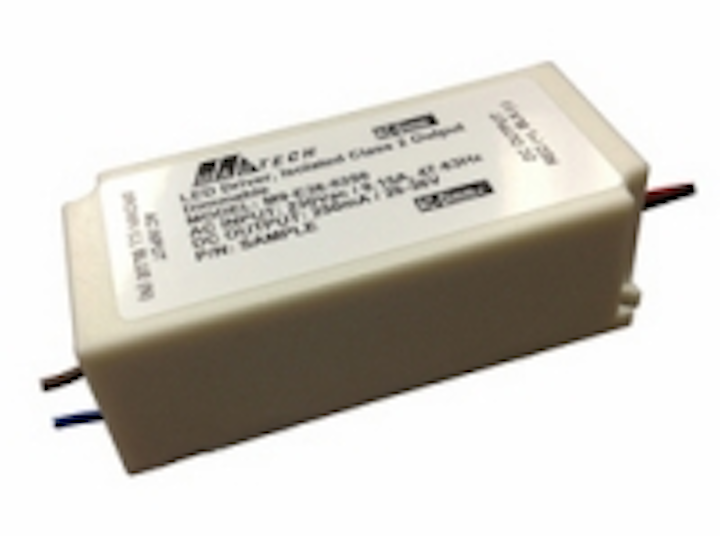

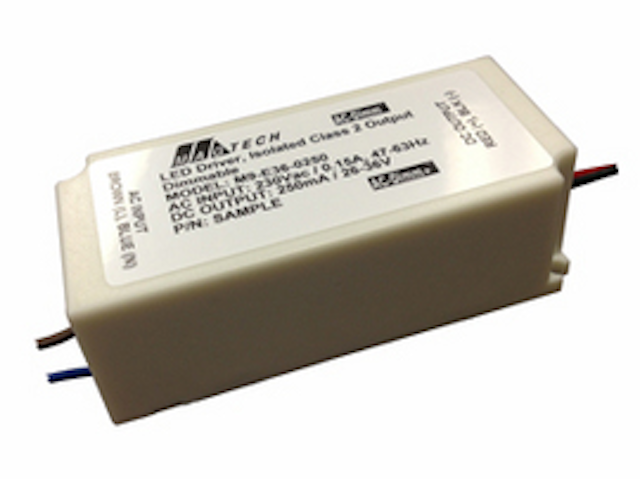

Las Vegas, Nevada – Magtech announces its new M-Series designated for LED down-light applications. The M-Series has two form-factors with 9-Watt and 18-Watt constant current outputs.

The M-Series employee the latest design topologies to provide the highest efficiency and capabilities of working with off-the-shelf triac dimmers. It also meets the latest Energy Star requirements. If you are looking for a reliable solution to solve your LED driver headaches, you cannot miss this new design from Magtech.

The key features of this series are,

-Super-Compact size with isolated DC output; 2.78” long and less than 1” high.
-110 or 220VAC input (AC-Dimm+®) or Full range input : 100-277VDC (non-dimming version)
-Low inrush current maximize number of units per circuit
-Power Factor > 0.97 with less than 20% of THD
-Typical efficiency of 87% help increase overall fixture lumen per watt
-Single constant current output with wide range forward voltage (Vf) ranged from 12 ~ 56VDC.
-SCP, OCP and OPP with auto recovery
-Fully potted, suitable for dry and damp location applications
-5VA case material help reduce installation costs
-UL8750 Class 2 recognized; CE EN61347 compliant

Contact
Magtech Industries Corp. 702-364-9998 - Tel 702-364-1562 - Fax

E-mail:csupport@magtechind.com

Web Site:www.magtechind.com
