ATG's iBright LED flat-panel light achieves 90 lm/W luminous efficacy

Content Dam Leds En Ugc 2013 08 Atg S Ibright Led Flat Panel Light Achieves 90 Lm W Luminous Efficacy Leftcolumn Article Thumbnailimage File
38914 0 thumb Date Announced: 08 Aug 2013

Product description

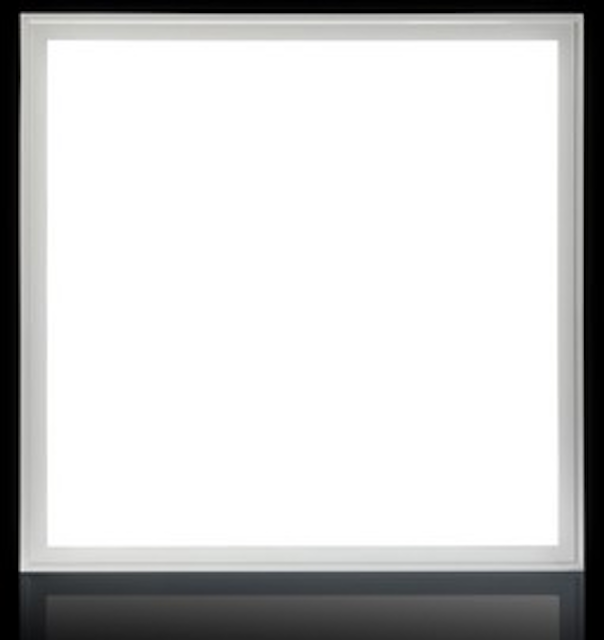

iBright™ LED Panel is a well-designed, lay-in ceiling troffer fixture widely used in offices, hospitals, and other professional locales.

iBright™ LED Panel has an outstanding luminous efficacy of 90lm/W achieved by utilizing ultra-bright SMD LEDs in tandem with Japanese-design reflective materials.

Thanks to its good heatsink design, iBright™ LED Panel has unbelievable low In-situ temperature 36°C. Calculated L70 lifetime is 94,000h.

Performance summary

Input: 40W, 120~277VAC, 0.34A
Luminous efficacy: Typ. 90 lm/W
Lumens: 3600 lm
CCT: 4000K & 5000 K
Color accuracy: CRI >80, R9 >10
L70 lifetime: 94,000h
PF >0.9, THD <20%
Spacing criteria: C0/180: 1.25; C90/270: 1.25
Dimension:603*603 mm (23.74*23.74 inch)

Contact
Andy Chang Toll Free: 877-461-5333

E-mail:sales@atgelectronics.com

Web Site:www.atgelectronics.com
