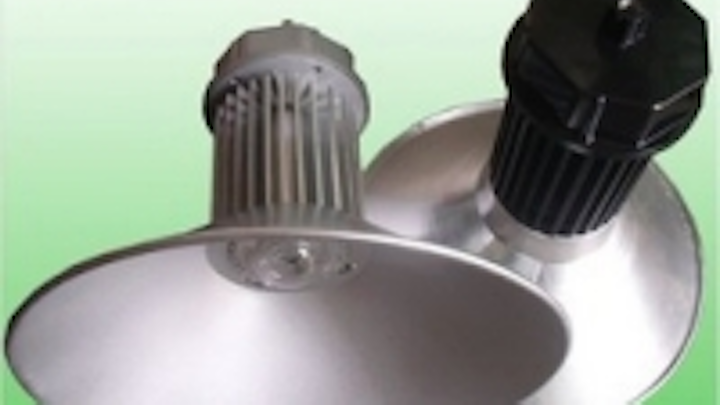

Chinahong introduces IP65-rated LED high-bay light with three-in-one dimming

Content Dam Leds En Ugc 2013 08 Chinahong Introduces Ip65 Rated Led High Bay Light With Three In One Dimming Leftcolumn Article Thumbnailimage File
39034 0 thumb Date Announced: 22 Aug 2013

As we know for conventional high bay light, it is for industrial application, such as factory, warehouse, supermarket and other inner buildings with high ceiling. And now with new concept of lighting and application, high bay light not only for indoor but also for outdoor, then strict requirement for water proof and dust proof for the whole fixture.

With engineers past 1year hard work for such the special design and test for the new model of LED high bay light, the lights is with IP65 suitable for outdoor lighting environment. Adopt top brand Meanwell driver, the LED high bay lights can be dimming controlled via three in one of 1~10Vdc, PWM signal or resistance for secondary energy saving. And the design lifespan is over 50,000hrs. Adopt high lumen bridgelux chips ensure more than 60% energy saving compared to conventional High Pressure Sodium and Metal Halide high bay light.
Power consumption is optional from 100W~200W for different application. The feature of this new model is as below.

CCT 4000K~6000K
CRI(color rendering index) Ra>70
LED lumen efficiency(lm/w) 130
Luminaire efficacy 0.9
Power efficiency 0.92
Luminaire power(W) 100W~200W optional
Mounting height(m) 8~12
Luminaires distance(m) 6~10
Intensity High
Light distribution Focus
Light loss N/A
Energy saving >70%
Life-span(hrs) Over 50000hrs
Power factor(PF) >0.95
Dimming for secondary energy saving 1~10Vdc, PWM signal or resistance dimming method
IP IP65
Annual maintenance costs N/A

Contact
Jim Tam, Chinahong +86-13416966485

E-mail:jim@chinahong.org

Web Site:www.chinahong.org
