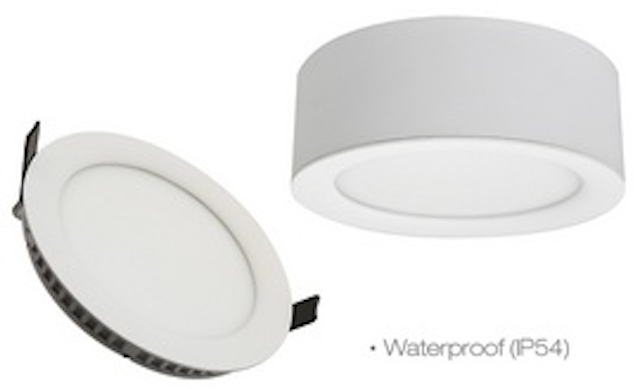

A Waterproof 6” Down Light for Wet Spaces Such As Bathrooms, Spas or Yachts

Taipei, Taiwan - GlacialLight, a division of the Taiwanese technology manufacturer, GlacialTech Inc., today announces waterproof LED down light, GL-DL06-IP. This compact 6” down light for wet spaces only consumes 12W. There are three different configurations of this down light available: non-dimmable, AC-TRIAC dimmable and 3-in-1 dimmable (1-10V/PWM/Resistor). All of these three configurations have three color temperature options.

In line with rest of the models in the Capella Series, GL-DL06-IP is a slim, sleek, and fashionable circular lightweight fixture. As an all‐in‐one lighting solution, it also provides for effortless installation on ceilings by mounting or placing it in a ceiling board. For ceiling mounting needs, a light fixture trim extension that hides the driver is available as an optional addition. Being IP54 rated, GL-DL06-IP is an ideal choice of a down light for wet indoor and sheltered outdoor applications, including bathrooms, outdoor corridors, spas and yachts.

This down light satisfies a very wide variety of general lighting applications thanks to its optimum 110° beam angle. The non-dimmable and 3-in-1 dimmable (1-10V/PWM/Resistor) options of GL-DL06-IP are suitable for a wide range of input voltages (100-240V AC), making them effective solutions for almost all worldwide locations. AC-TRIAC dimmable option is available in either 100-120V AC or 200-240V AC input.

GL-DL06-IP is available in a color temperature of 3000K (Warm White), 4000K (Neutral White) or 5700K (Cool White). The light cast smoothly fades around the edges of the fixture thanks to luminosity reflecting on the edges and the special paint solution on the surface. This provides for an atmospheric and aesthetic effect ideal for spaces such as bathrooms or spas.

GlacialLight has designed the GL-DL06-IP LED Down Light, with environmental protection in mind, to be RoHS compliant. In addition, this down light does not contain hazardous chemicals such as mercury, and does not emit harmful UV or IR rays, making it far more eco‐friendly than lighting fixtures based on older technologies.
Specifications
DL06-IP (non-dimmable)
Type
GL-DL06-IP-WW
GL-DL06-IP-NW
GL-DL06-IP-CW
Energy Used
12W
Rated Life
30,000 Hours
Input Voltage
100-240V AC
Power Factor (PF)
0.88@120V AC, 0.80@240V AC
CCT (color)
3000K
4000K
5700K
Luminous Flux
570lm
630lm
700lm
Luminous Efficacy
48m/W
53lm/W
80lm/W
CRI
80
80
80
Beam Angle
110°
Dimension
Ф 161 x 20mm
IP Rating
IP54
Operation Temperature
-20°C ~ +40°C
Bundled Driver
GP-HS10P-36C
Net Weight
460g (with driver)
Package
20 PCS / Carton

DL06Dx-IP (AC-TRIAC dimmable)
Type
GL-DL06DL-IP-WW
GL-DL06DH-IP-WW
GL-DL06DL-IP-NW
GL-DL06DH-IP-NW
GL-DL06DL-IP-CW
GL-DL06DH-IP-CW
Energy Used
12W
Rated Life
30,000 Hours
Input Voltage
100-120V AC (GL-DL06DL)
200-240V AC (GL-DL06DH)
Power Factor (PF)
0.8@120V AC / 0.7@240V AC without dimmer
CCT (color)
3000K
4000K
5700K
Luminous Flux
570lm
630lm
700lm
Luminous Efficacy
48lm/W
53lm/W
58lm/W
CRI
80
80
80
Beam Angle
110°
Dimension
Ф 161 x 20mm
IP Rating
IP54
Operation Temperature
-20°C ~ +40°C
Bundled Driver
GP-TS10P-30L (for AC-TRIAC 100-120V AC)
GP-TS10P-30H (for AC-TRIAC 200-240V AC)
Net Weight
460g (with driver)
Package
20 PCS / Carton

DL06DA-IP (3-in-1 dimmable) 1-10V/PWM/Resistor
Type
GL-DL06DA-IP-WW
GL-DL06DA-IP-NW
GL-DL06DA-IP-CW
Energy Used
12W
Rated Life
30,000 Hours
Input Voltage
100-240V AC
Power Factor (PF)
0.88@120V AC, 0.80@240V AC without dimmer
CCT (color)
3000K
4000K
5700K
Luminous Flux
570lm
630lm
700lm
Luminous Efficacy
48lm/W
53lm/W
58lm/W
CRI
80
80
80
Beam Angle
110°
Dimension
Ф 161 x 20mm
IP Rating
IP54
Operation Temperature
-20°C ~ +40°C
Bundled Driver
GP-HS10P-36CA (for 1-10V/PWM/Resistor)
Net Weight
460g (with driver)
Package
20 PCS / Carton

Product Highlights of GL-DL06-IP LED Down Light Series
For indoor or sheltered outdoor ceiling lighting applications
Waterproof (IP54)
All-in-one bulb and fixture
Light flow smoothly fades around the edges of the fixture to create a special atmospheric effect
Non-dimmable, AC-TRIAC dimmable and 3-in-1 dimmable (1-10V/PWM/Resistor) options
Slim, compact and fashionable design
Very low power consumption
No UV or IR radiation

Read more about this new product please visit at GlacialLight's website:
http://www.glaciallight.com/products/DL06IP.htm
About GlacialLight
GlacialLight, the lighting division of GlacialTech, manufactures LED lighting solutions for indoor/outdoor applications and both residential and commercial uses. As well as having a wide range of finished LED lighting products, GlacialLight also offers its clients the option of customizing products for specific needs. Please visit the company homepage at www.GlacialLight.com.

Contact
Name: GlacialLight contact person: Erin Huang Company: GlacialTech Inc Telephone: +886 2 2244 1227 ext600

E-mail:sales@glacialtech.com

Web Site:www.glaciallight.com/GL_index.htm
